Gauge range, up to 4 mm
Resolution, down to 0.3 nm
Roundness: Radial accuracy ± 0.05 μm
Roughness: Noise < 30 nm Rq all axes; Ra values < 0.1 µm Rq
Contour: LS Arc measurement 5 µm; Pt 0.5 µm
Key features
Fully automated centre and level capability with radial follow mode
Automatic gauge calibration
Patented arm attitude/orientation mechanism with choice of automated or manual
Vertical straightness units of up to 1500 mm
Large diameter range (1700 mm) with adjustable column and 300 mm radial arm
Metrology 4.0 Smart Software

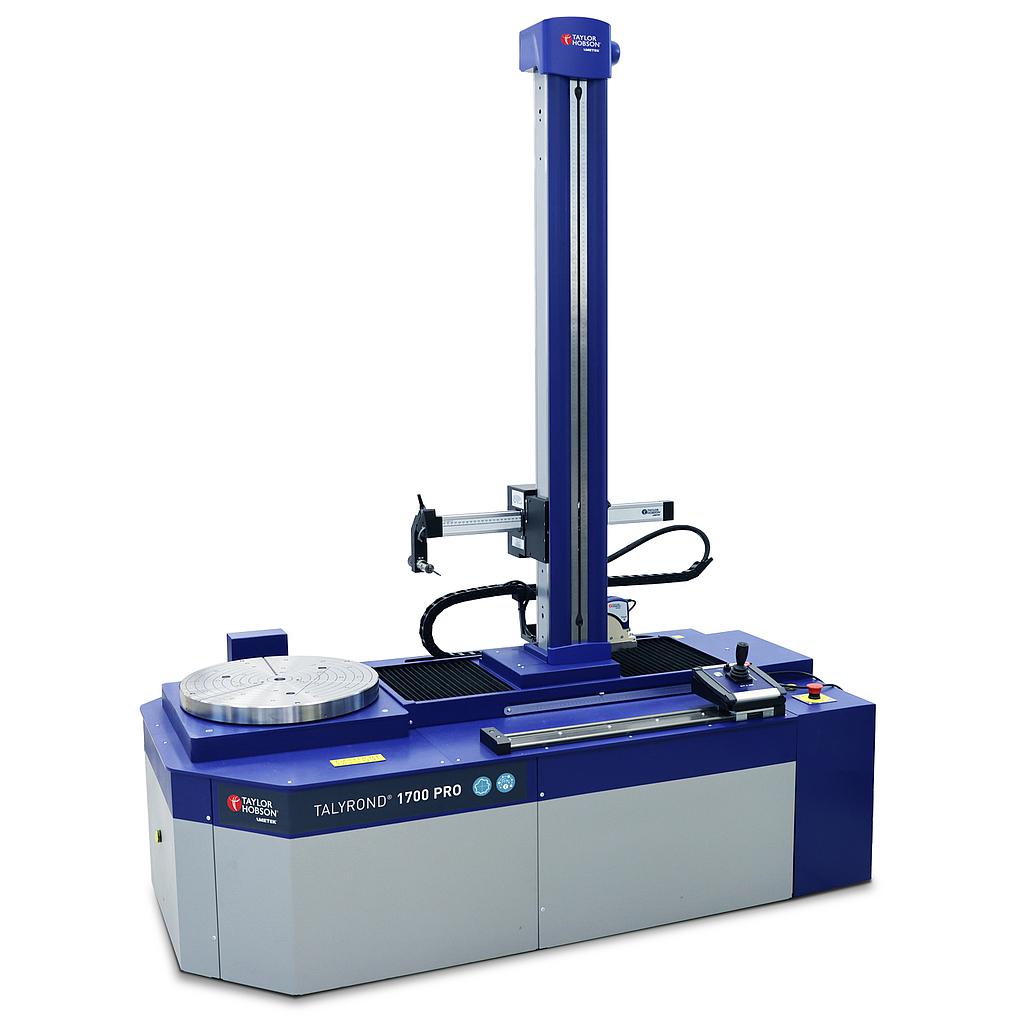

The Talyrond® 1700 PRO consists of proven technology combined into one stable instrument platform.
Nestled in the instruments solid foundation is a highly accurate oil spindle with load capacity of up to 450 kg. This unique design maintains its precision regardless of component weight.
The column structure and base foundation are key to providing unrivalled parallelism, cylindricity and roundness measurement.
The Talyrond® 1700 PRO utilises Taylor Hobson’s Talyvel® Electronic Levels to maintain parallelism between the spindle axis and column regardless of column position.
Applications
Large diameter bearings
Inner bearing races
High pressure turbines and compressors
Shafts
Jet engines
Crankshafts
