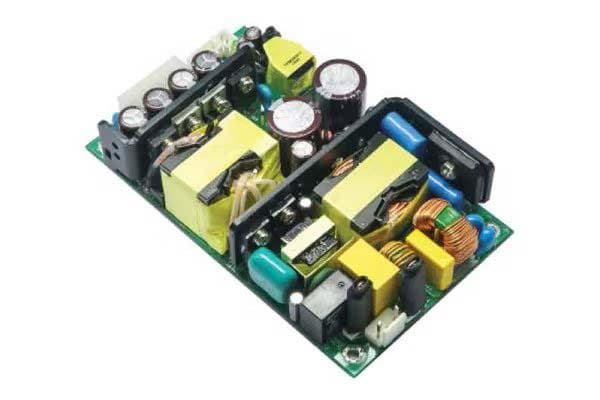

TDK-Lambda CSS280-48/M 스위칭 전원 공급 장치 AC-DC, 의료용, 115-230VAC, 출력 48V 5.83, 280W Molex 단자

Width: 76.2 mm (3 in)

Height: 29.97 mm (1.18 in)

Length: 127 mm (5 in)

Industry: Medical

Efficiency: 91%

Output Power: 280 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5.83 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
