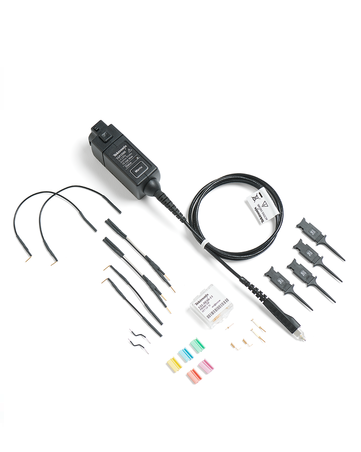

TEKTRONIX TAP1500 + TAP1500 R5 액티브 프로브 (1.5 GHz)

Attenuation (probe only): 10X ±2%

Typical characteristics

Bandwidth (probe only): ≥1.5 GHz

Rise time (probe only): <267 ps

Input capacitance: <1 pF

Input resistance: 1 MΩ

Linearity: ±8 V (16 Vp-p)

Input offset range: ±10 V

Maximum non-destructive input voltage: ±15 V (DC + peak AC)

Propagation delay: 5.3 ns (TAP1500)/28.9 ns (TAP1500L)

EMC, environment, and safety

Temperature Operating: 0 °C to +50 ° (+32 °F to 122 °F)

Nonoperating: -40 ° C to +71 °C (-40 °F to 160 °F)

Humidity Operating:

5% to 95% Relative Humidity up to +30 °C (+86 °F)

5% to 85% Relative Humidity at 30 °C to +50 °C (+86 °F to +122 °F) noncondensing

Nonoperating

5% to 95% Relative Humidity up to +30 °C (+86 °F)

5% to 85% Relative Humidity at 30 °C to +75 °C (+86 °F to +167 °F) noncondensing

Altitude Operating: Up to 4,400 m (14,436 ft)

Nonoperating: Up to 12,192 m (40,000 ft)

Physical characteristics

Probe head size

Height: 4.83 mm (0.19 in)

Width: 7.87.1 mm (0.31 in)

Length: 59.18 mm (2.30 in)

Include: TAP1500 R5
