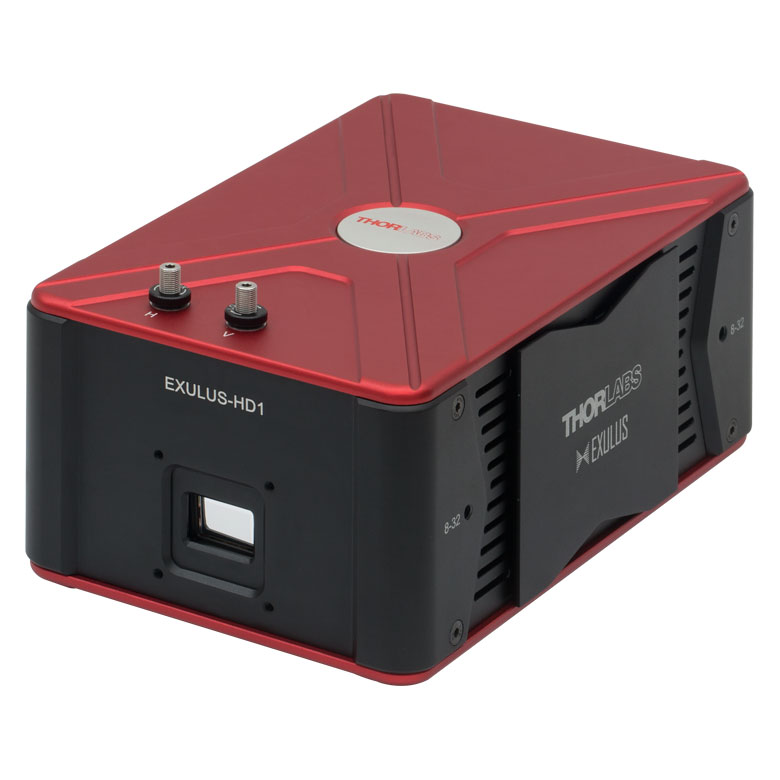

THORLABS EXULUS-HD1 Spatial Light Modulator (400 - 850 nm, 8-32 Taps)

Key Specifications(a)

Operating Wavelength: 400 - 850 nm

Panel Resolution: 1920 x 1080 (Full HD)

Fill Factor: >93%

Panel Active Area: 12.5 mm x 7.1 mm

Pixel Pitch: 6.4 µm

Phase / Retardance Range (b): 2π at 633 nm (Standard Mode); 4.7π at 532 nm (Extended Mode)

Frame Rate: 60 Hz (Standard) or 180 Hz (Frame Boost(c))

Fluctuation/Flickering (RMS):<1% (Standard) <5% (Extended)

Output Trigger: N/A

(a) Complete specifications may be found on the manual.

(b) Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance.

(c) Frame Boost Mode (referred to as Triple Mode in the software) plays the R, G, and B channels of the video signal in succession, for an overall frame rate of 180 Hz.
