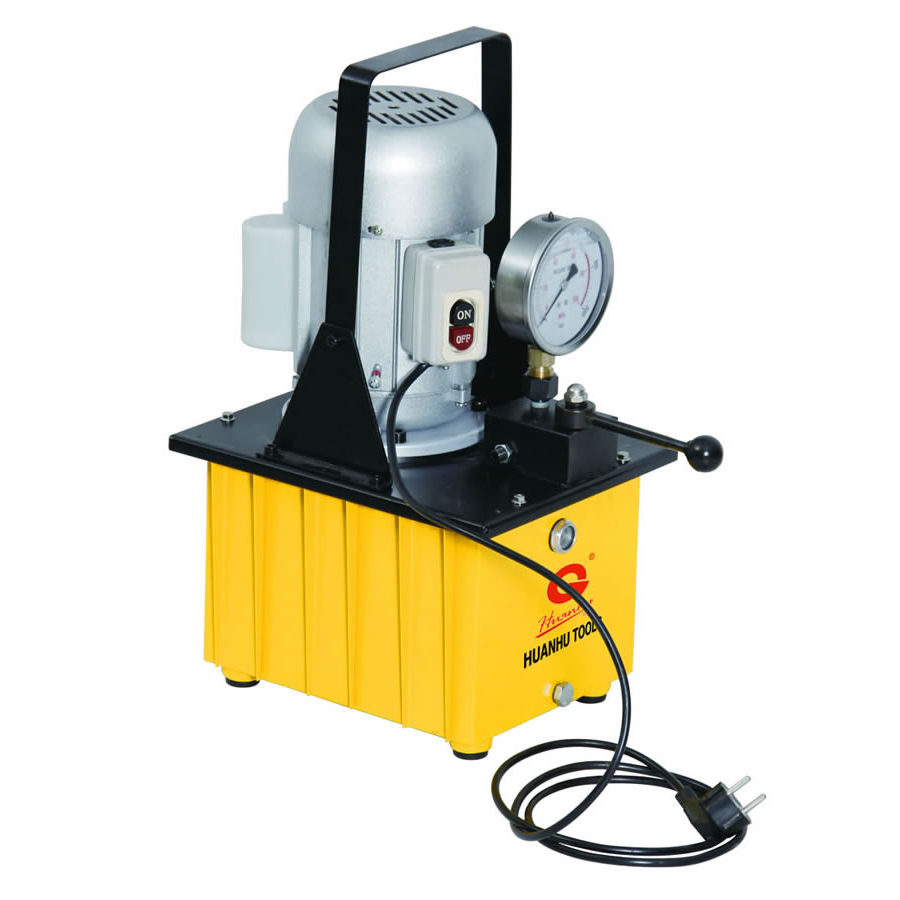

TLP HHB-630C Electric Powered Hydraulic Pump (20 / 700 bar)

Pump type: One-way

Power rating: 0.75 kW

Working pressure (low/high): 20 / 700 bar

Flow rate (low/high): 5 / 0.7 L/min

Usable oil capacity: 8 L

Dimensions (L × B × H): 305 × 245 × 510 mm

Weight: 22 kg

Characteristics:

Working pressure: 700 bar

Oil reservior: 8 liters

HHB-630C is one-way pump for single-acting applications.

●Lightweight and carrying handle allows for easy transport of the pump.

●Two-speed operation reduces cycle time for improved productivity.

●All valves are 3 position for Advance-Hold-Retract.

●All the pumps are equipped with pressure gauge, which minimizes

the risk of overloading and ensure long, dependable service.

●Manual valve and motor control Internal pressure relief valve prevents overloading.

●Each pump comes with 1.5 meter hose and R2 3/8 quick coupler with dust cap.
