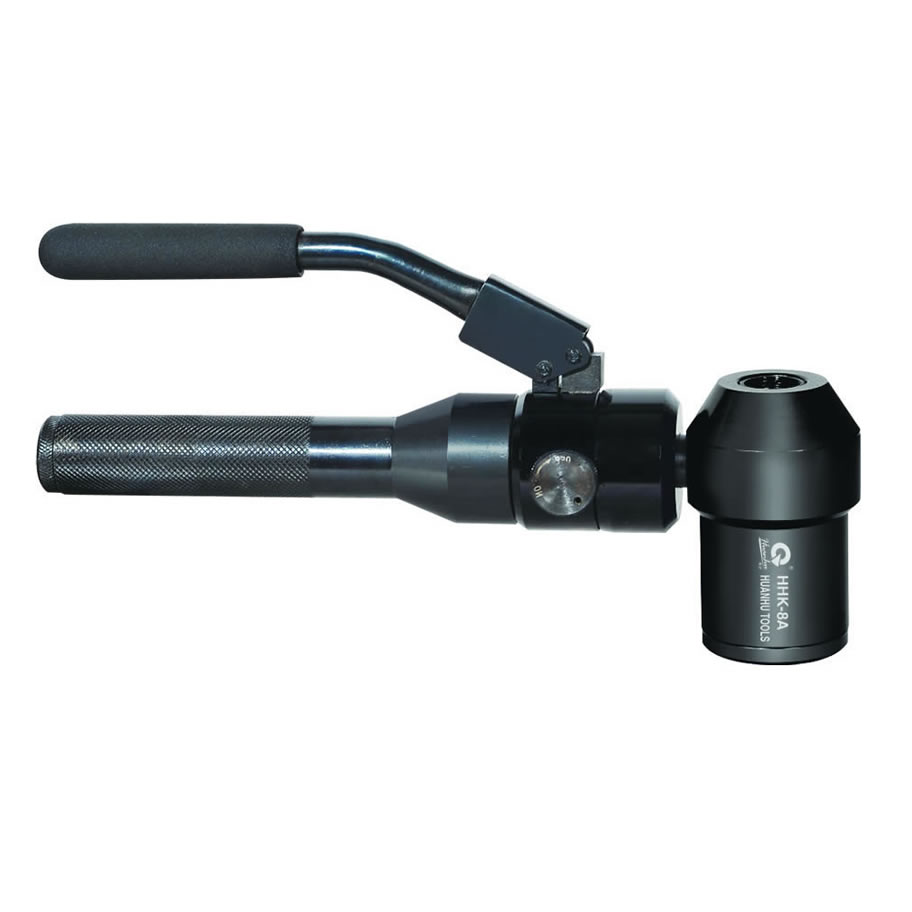

TLP HHK-8A Self-contained Hydraulic Knockout Puncher (11T; 20mm)

Output force: 11 ton

Stroke: 20 mm

Max thickness: 1.6 mm stainless steel / 3.2 mm mild steel

Punch range: 16–60 mm

Punch dies: Ø22, Ø27, Ø34, Ø43, Ø49, Ø60 mm

Machine weight: 8.6 kg

Packing size: 490 × 260 × 130 mm

Characteristics:

Punching capacity:

Stainless steel plate up to 1.6 mm thickness

Mild steel plate up to 3.2 mm thickness

Punching range: Ø16-60mm

●Made of aluminum, the tool features lightweight and high portability.

●The head of HHK-8A is right-angled and rotating 360°, which allows greater versatility in tight spaces.
