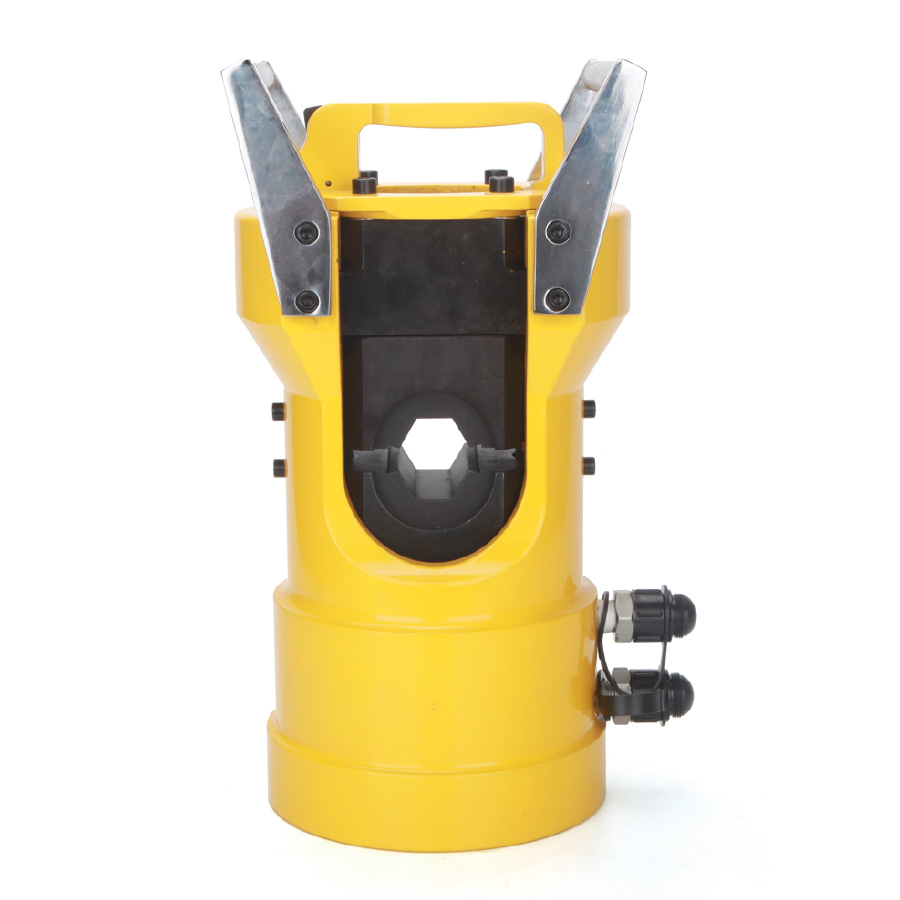

TLP HHY-100TF Hydraulic Crimping Head (100T; 24mm)

Max. Pressure (T): 100

Max. Stroke (mm): 24

Crimping Range (mm²): 240 – 1000

Crimping Dies (mm²): 240, 630

Crimp Pattern: Hexagonal type

Gross Weight (kg): 50

Packing Size (mm): 230 × 320 × 450

Characteristics:

Double-acting, 100 Tons

●Sturdy construction for safe working.

●Simple design for easy maintenance.

●Ram retracts hydraulically, the retracting time is 1/3 of spring return.

●Removable die cap design helps operator an easy insertion and removable of the connector.

●Functional handles for easy carrying and repositioning.

●Requires an external double acting hydraulic pump. with rated oil pressure of 700 bar.

●Designed as a portable tool for installing compression sleeves and terminals for transmission construction and maintenance work.

●Comes delivered in sturdy wooden box.

Crimping Range:

Copper sleeve up to 76 mm O.D.

Aluminum sleeve up to 76 mm O.D.

Steel sleeve up to 50 mm O.D.
