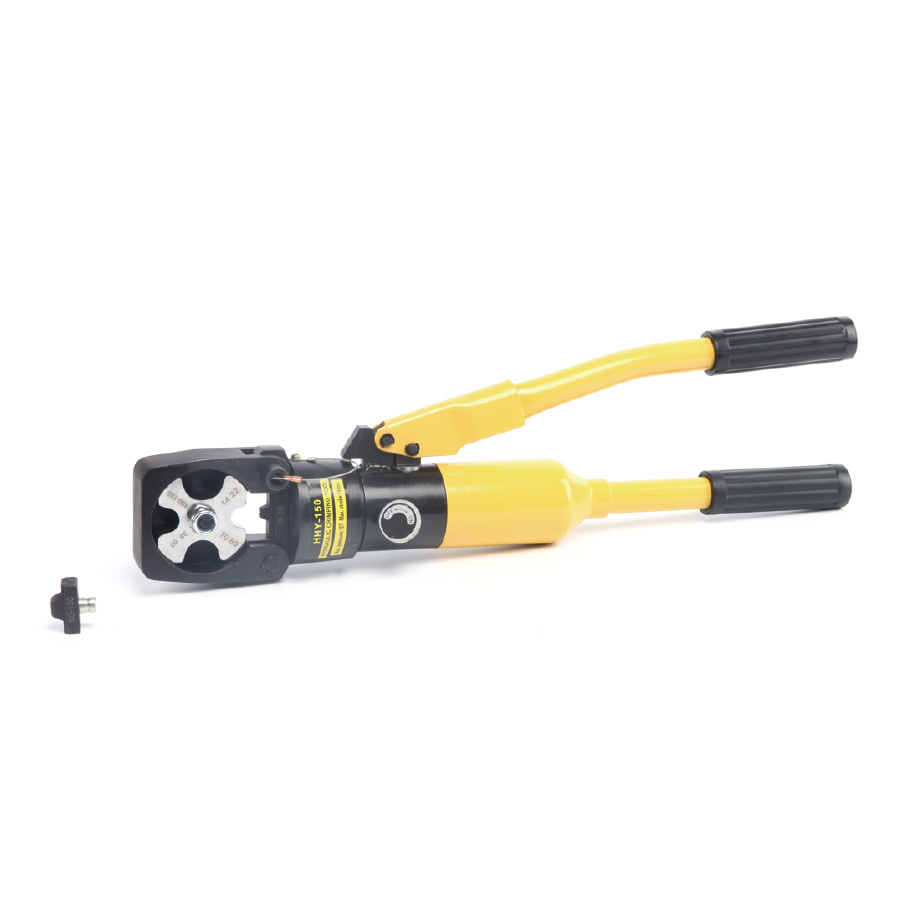

TLP HHY-150 Hand Operated Hydraulic Crimping Tool (11T; 18mm)

Hydraulic Ram Output: 11 Ton

Ram Stroke: 18 mm

Crimping Range (mm²): 14 – 150

Crimp Pattern: Indent type

Crimping Dies (mm²): 14, 22, 38, 60, 70, 80, 100, 150

Gross Weight (kg): 6.7

Characteristics:

Built-in safety valve

For non-Insulated terminals and sleeves up to 150mm2.

Rotatable indentors 14-22, 38-60,70-80 and 100-150mm2

Built-in pressure relief valve for overload protection.

Two-speed pump to reduce cycle time.

Ram retraction by turning the release knob anticlockwise.

Molded plastic carry case.
