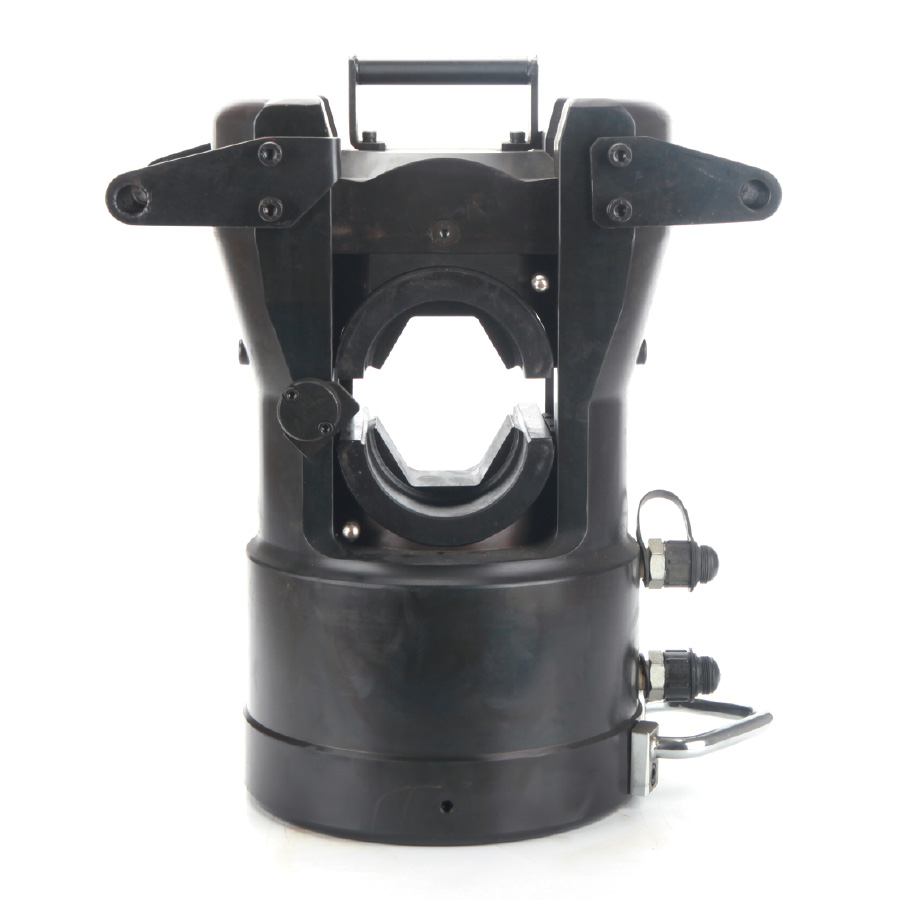

TLP HHY-200T Hydraulic Crimping Head (200T; 40mm)

Output Force (ton): 200

Ram Stroke (mm): 40

Crimping Range (mm²): 150 – 1440

Crimping Dies (mm²): 630, 800, 1000

Crimp Pattern: Hexagonal type

Gross Weight (kg): 110

Characteristics:

Double-acting, 200 Tons

Crimping Range:

Copper sleeve up to 86 mm O.D.

Aluminum sleeve up to 100 mm O.D.

Steel sleeve up to 50 mm O.D.

Sturdy construction for safe working.

Simple design for easy maintenance.

Ram retracts hydraulically, the retracting time is 1/3 of spring return.

Removable die cap design helps operator an easy insertion and removable of the connector.

Functional handles for easy carrying and repositioning.

Wide crimping area reduces crimping cycles and minimizes curving and tensioning of conductors.

Requires an external double acting hydraulic pump with rated oil pressure of 700 bar.

Designed as a portable tool for installing compression sleeves and terminals for transmission construction and maintenance work.

Comes delivered in sturdy wooden box.
