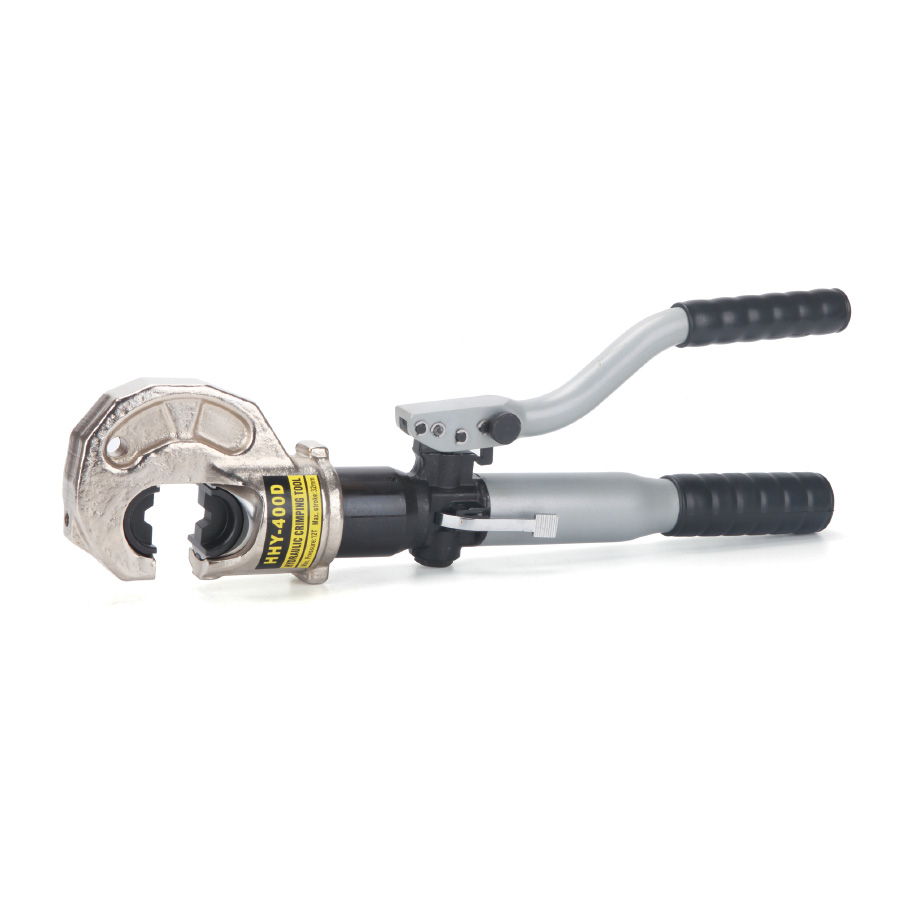

TLP HHY-400D Hand Operated Hydraulic Crimping Tool (11T; 32mm)

Hydraulic Ram Output: 11 Ton

Ram Stroke: 32 mm

Crimping Range (mm²): 16–400

Crimp Pattern: Hexagonal type

Crimping Dies (mm²): 50, 70, 95, 120, 150, 185, 240, 300, 400

G.W. (kg): 11.9

Packing Size (mm): 610 × 210 × 110

Characteristics:

Aluminum pump lever and housing result in low weight

Open C head, large crimping area up to 400mm²

Built-in safety valve

●Open C crimping head, rotatable, large crimping area up to 400mm².

●Light weight due to high quality aluminum housing.

●Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.

●Manual release in case of need.

●The rotatable head permits to work in tight locations.

●Faster operation with less force thanks to the 2-stage hydraulic system.

●Sturdy steel storage box.
