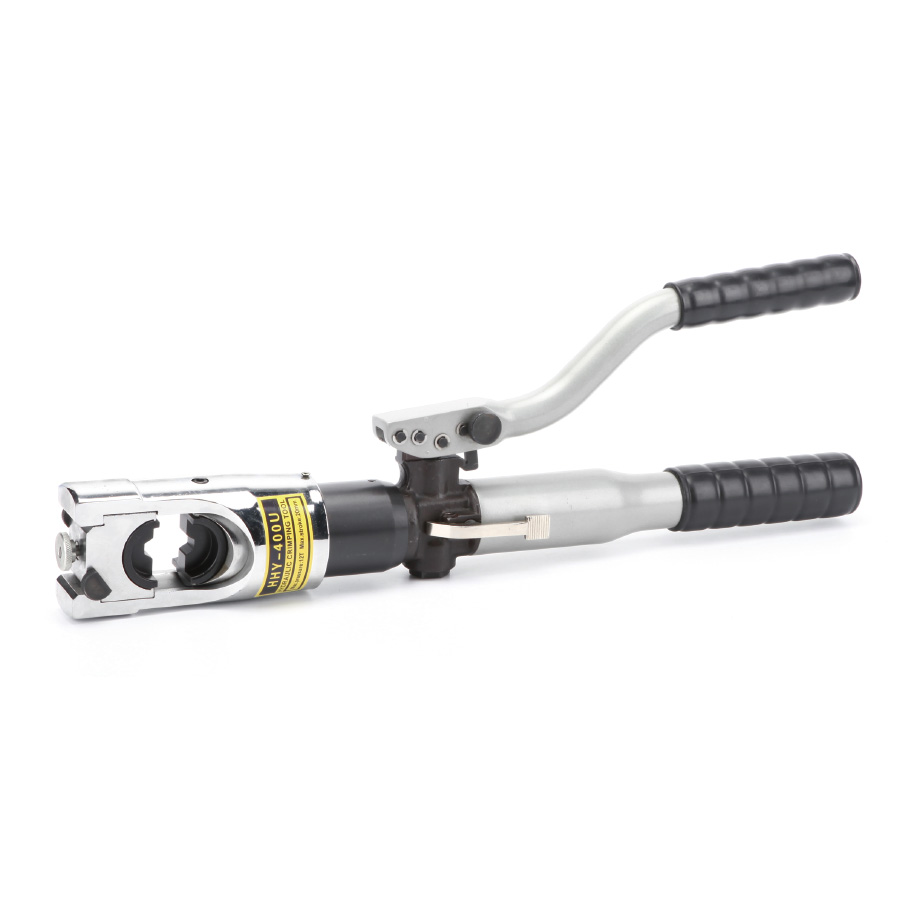

TLP HHY-400U Hand Operated Hydraulic Crimping Tool (11T; 20mm)

Hydraulic Ram Output: 11 Ton

Ram Stroke: 20 mm

Crimping Range (mm²): 16–400

Crimp Pattern: Hexagonal type

Crimping Dies (mm²): 50, 70, 95, 120, 150, 185, 240, 300, 400

G.W. (kg): 9.3

Characteristics:

Aluminum pump lever and housing result in low weight

Built-in safety valve

H-head for deep groove applications.

Large crimping area up to 400mm².

Light weight due to high quality aluminum housing.

Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.

Manual release in case of need.

The rotatable head permits to work in tight locations.

Faster operation with less force thanks to the 2-stage hydraulic system.

Sturdy steel storage box.
