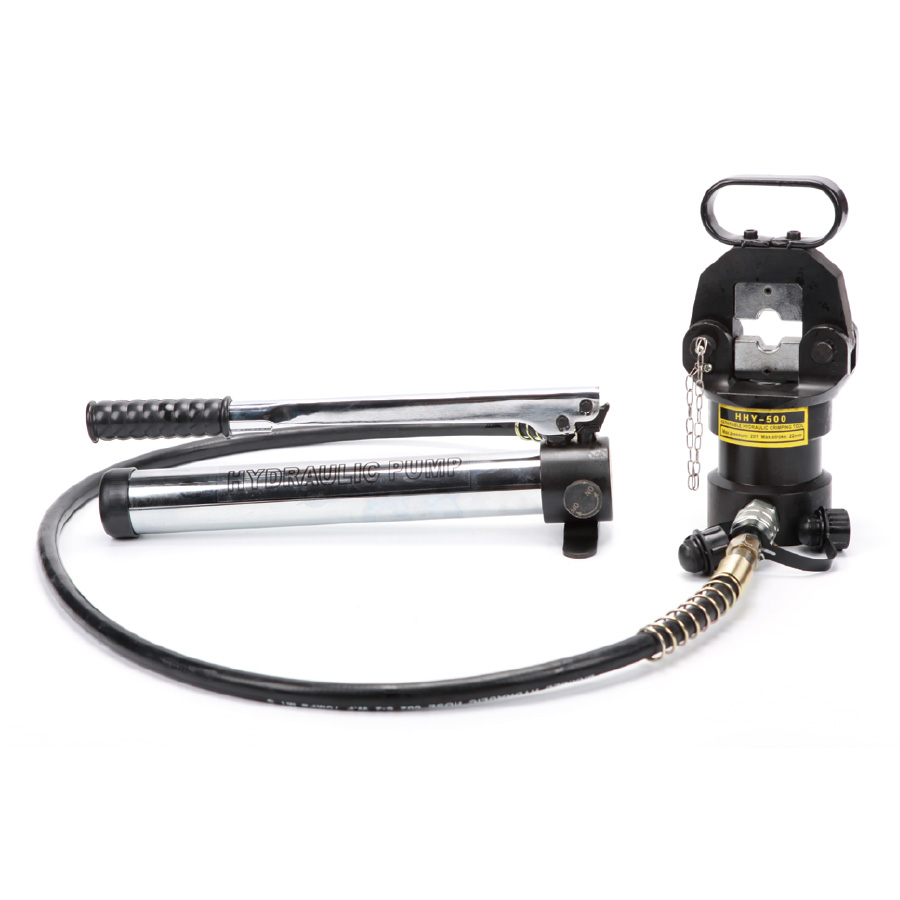

TLP HHY-500 Hydraulic Crimping Tool with hand pump (20T; 22mm)

Output Force (ton): 20

Ram Stroke (mm): 22

Crimping Range (mm²): 16 – 400

Crimping Dies (mm²): 70, 95, 120, 150, 185, 240, 300, 400, 500

Crimp Pattern: Hexagonal type

Pump Model: HHB-600A

Gross Weight (kg): 17.2

Packing Size (mm): 490 × 260 × 130

Characteristics:

●Yoke-type head design, solid and durable.

●Hand pump HHB-600A is lightweight and simple to use.

●High pressure hose 1.2 meters length.

●Positive die locking mechanism holds dies firmly in place.

●Retracts ram by turning anticlockwise the release knob on hand pump.

●Steel storage box.
