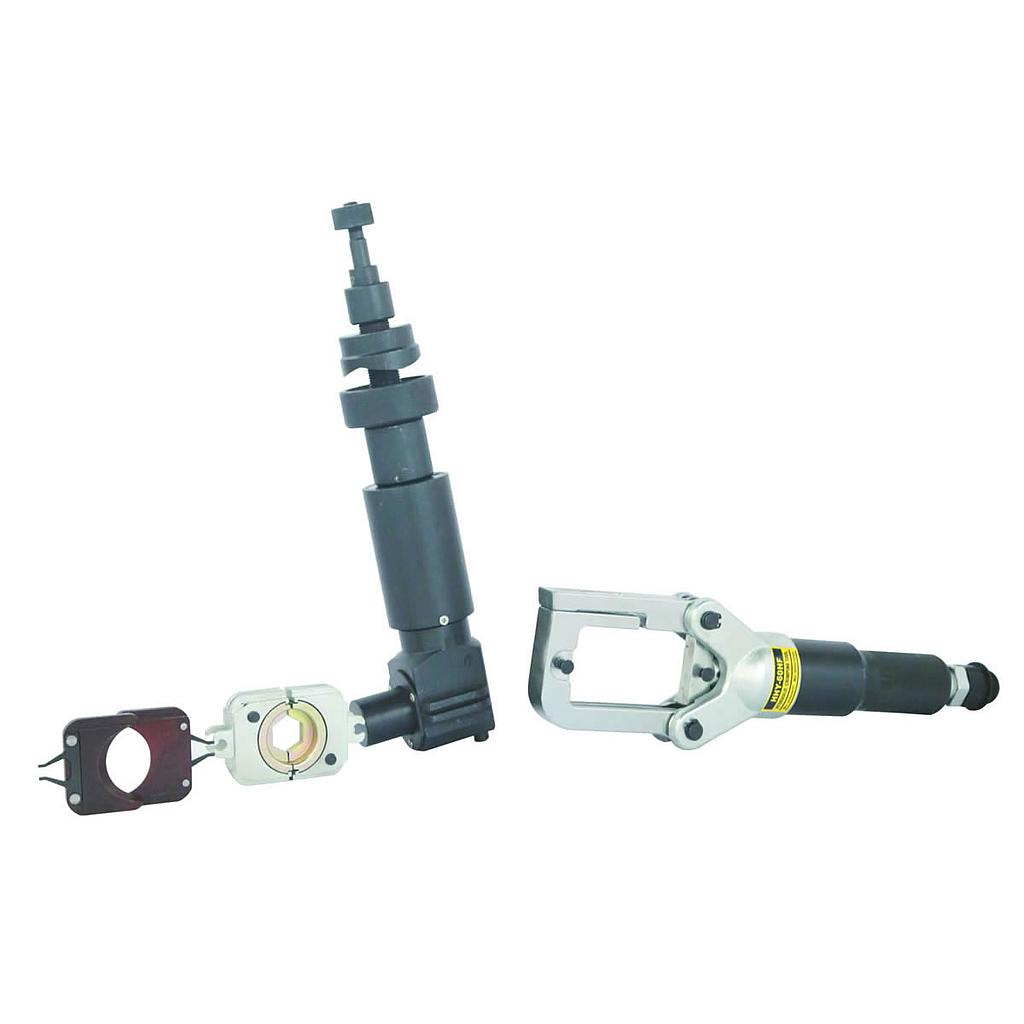

TLP HHY-60HF Hydraulic Crimping Head (6.5T; 42mm)

Hydraulic Ram Output: 6.5 Ton

Ram Stroke: 42 mm

Cutting Range (mm): Ø40 (Copper, Aluminum, Armored cable)

Crimping Range (mm²): 16 – 300

Punching Range (mm): Ø22.5 – Ø61.5

Gross Weight (kg): 13.6

Accessories

Crimping Dies (mm²): 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300

Punching Dies (mm): 22.5, 28.3, 34.6, 43.2, 49.6, 61.5

Blades: 1 set

Crimping Adapter: 1 pc

Punching Adapter: 1 pc

Draw Stud M20×1.5: 1 pc

Draw Stud M10×1: 1 pc

Spacer: 1 pc

Sealing Ring of Cylinder: 1 pc

Sealing Ring of Safety Valve: 1 pc

Characteristics:

Rotatable flip top head.

One universal head for crimping, cutting and punching.

Supplied with R2 3/8 male coupler and dust cap.

For connecting to hydraulic pumps with 700 bar operating pressure for best possible crimping, cutting and punching results.
