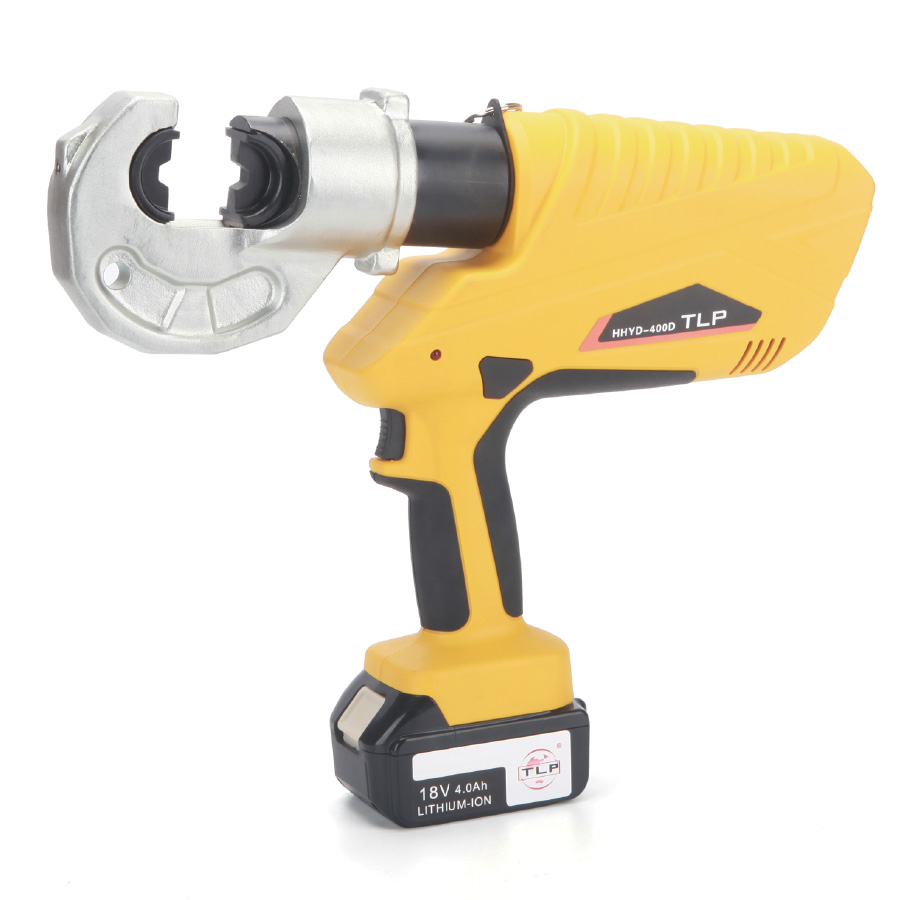

TLP HHYD-400D Battery Powered Hydraulic Crimping Tool (11T; 32mm)

Hydraulic Ram Output: 11 Ton

Ram Stroke: 32 mm

Battery Capacity: 180 crimping cycles

Crimping Range: 16 – 400 mm²

Crimping Time: 5 – 15 s (depending on cable size)

Battery: 18 V / 4.0 Ah Li-ion

Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

Weight: 16.6 kg

Packing Size: 585 × 500 × 170 mm

Characteristics:

●Open C-crimping head, rotating 330°.

●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

●10000+ cycle service life.

●Ram retracts to original position automatically when operation is complete.

●Manual retraction in case of need.

●Audible buzzer and red LED light in case of error.

●Quick motor stop for higher user safety.

●Powerful 18V Li-ion battery with low battery warning.

●Ergonomic 2-component grip area and balanced center of gravity.

●Sturdy plastic storage box.
