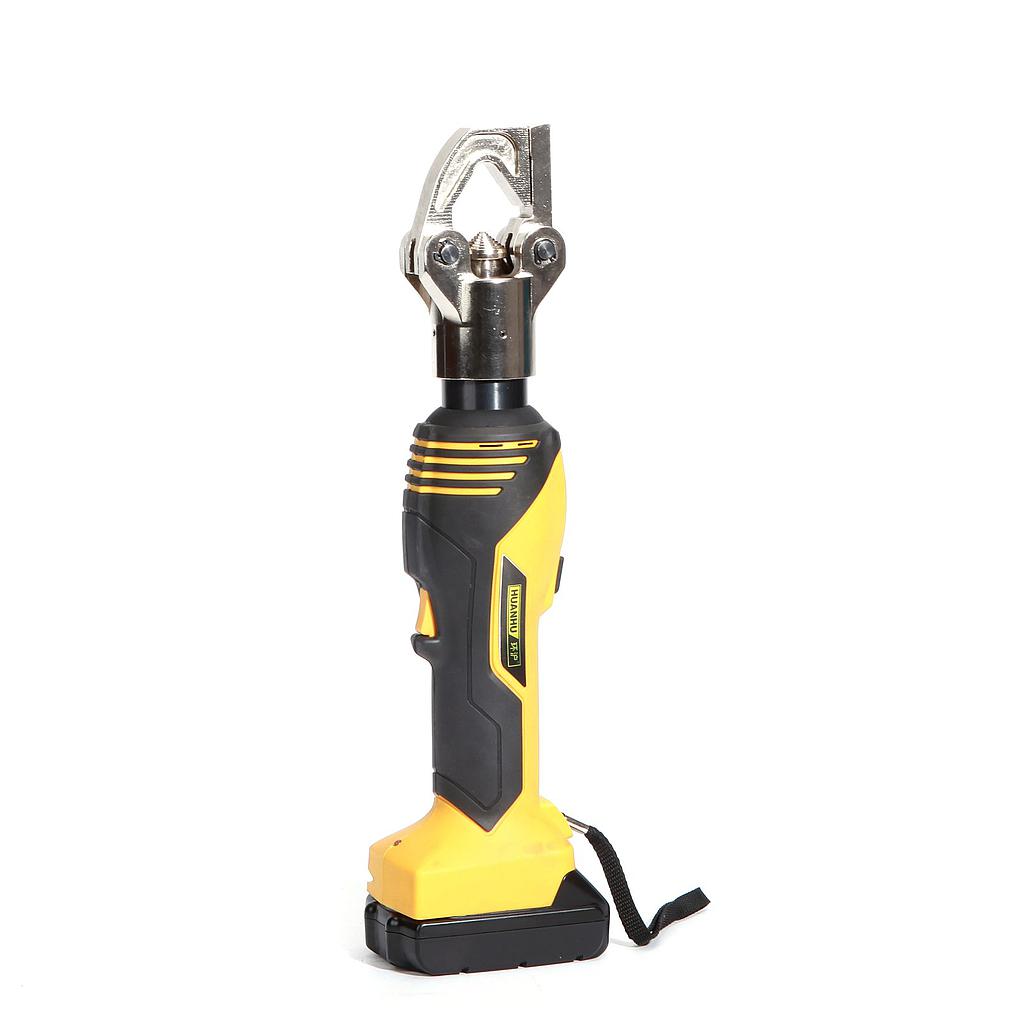

TLP HHZD-240DY Battery Powered Hydraulic Crimping Tool (7T; 30mm)

Hydraulic Ram Output: 7 Ton

Ram Stroke: 30 mm

Battery Capacity: 160 crimping cycles

Crimping Range: 16 – 240 mm²

Crimping Time: 3 – 6 s (depending on cable size)

Battery: 18 V / 2.0 Ah Li-ion

Weight: 9.5 kg

Characteristics:

Flip-top head enables quick change of crimping dies.

Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

10000+ cycle service life.

Ram retracts to original position automatically when operation is complete.

Manual retraction in case of need.

Audible buzzer and red LED light in case of error.

Quick motor stop for higher user safety.

Powerful 18V Li-ion battery with low battery warning.

Ergonomic 2-component grip area and balanced center of gravity.

Sturdy plastic storage box.
