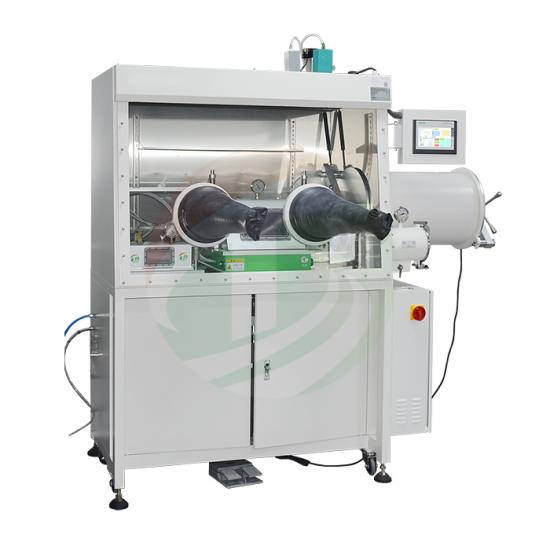

TOB TOB-GB-1220 Single Workstation Lab Equipment Glove Box (0-500ppm H20, 0-1000ppm O2)

1. Glove box

    1.1 Box size: (L*W*H)=1220×750×900mm

    1.2 Box material :stainless steel304

    1.3 With 3 KF40 backup interface and 1 power interface

    1.4 With two layers of shelves

2. Box bracket : Height:900mm

3. Main pipe : Stainless steel material, DN40

4. Cycle valve : Electronically controlled pneumatic vacuum bellows sealed valve, DN40

5. Bigger transitive cabin :  φ360*600mm, Automatic valve control air extracting and inflating

6. Smaller transitive cabin : φ150*300mm, Manual valve to control the pumping and inflating

7. Box window : Transparent toughened glass, thickness of 8mm

8. Gloves interface : Stainless steel, diameter : 200mm.

9. Gloves : Butyl rubber material, 7B1532.

10. Vacuum pump : With oil mist filter, RV8

11. circulating fan : Flow90 m3/h,

12. Purifier material:Import from Germany

13. Water analyzer : testing range：0-500ppm, Especially for the lithium battery manufacturing and metal organic users, can be washed and reused.

14. Oxygen analyzer：testing range: 0-1000ppm,The ZrO2 sensor, avoid the fuel battery life short, not exposed in the air of the problem.
