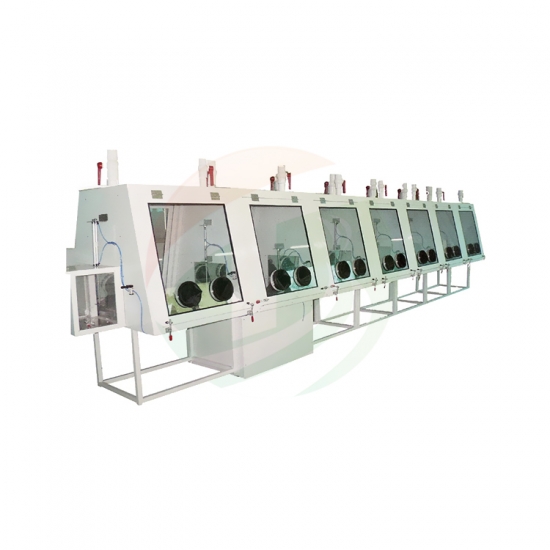

TOB TOB-GB-DVS Glove Box With Dry Air And Vacuum Function (0.6-0.7MPa, 5L/S)

Dimension : 1000*1400*1800mm section, customized

Source voltage : AC110V/220V  50/60HZ

Power : 0.5KW

Air source : 0.6-0.7MPa, 5L/S

Finished glove box according to customer’s requirement:

Source voltage: AC110V/220V   50/60HZ

Power: 1000W

Air intake: 4 inch ball

Air outlet: 3 inch ball

Glove port: Φ200mm

Glove pairs: 4 pairs

Ante chamber size: 350*200*400mm

Dimension: 1530*1200*1850mm

Weight: 350kg

Material: Stainless steel
