Measuring system: Electronic generating DDC loop system
Measurement module: M(0.2) 0.5~12
Base circle diameter: Ø300 (outer diameter 350)
Helix angle: ±65º (90º)
Gear width: 400mm max
Gear length: 30 ~ 520mm
Permissible gear weight: 500kg max
Drive system: Constant-current drive
Weight: 1500kg
Power supply: Single phase AC 100V 50/60Hz 6A
Measurement accuracy: 0.1µm
Width (mm): 1240
Depth (mm): 750
Height (mm): 1830
A (mm): 400
B (mm): 400
CHARACTERISTICS
The consummate manufacturing technique of Tokyo Technical Instruments(TTI) provides the diagraph equipments of the precision for you, the designer owns abundant wheel gear test experience, the product technique function is incomparable, testing various wheel gear of the realm containment, testing the process realization to make to move to turn completely, the high speed turns

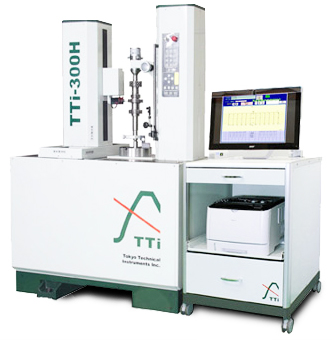

The full-automatic wheel gear measuring instrument, adopting to synthesize the DDC electronics circulatory system creatively, the simple operation can immediately carry out the fast test with high accuracy; the machine of the high strength designs, raising the stability of the test process; match with the profession test software, thus monitoring it in brief convenient, the data is more accurate to pretend to fulfill.
