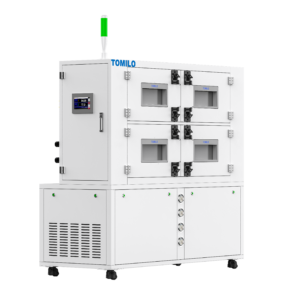

Tomilo Multi-channel chiller Multi-channel Chiller (1-20L/min)

Flow Range: 1-20L/min

Temperature Range: -40℃~100℃

Temperature Control Accuracy: ±0.5℃

Temperature Display: 0.01℃

Cooling Medium: Ethylene glycol antifreeze, freezing point below -45 ℃

Flow Control Accuracy: ±0.2L/min

Flow Display: 0.01L/min

Pressure Control Range: 0~250kPa

Pressure Control Accurac: ±2kPa

 Pressure Display: 0.1kPa

Dielectric Interface: DN15/DN20

Cooling Method: Air cooled/water cooled

Power Supply Requirements AC380V/50Hz: AC380V/50Hz three-phase

Program Temperature /Flow/Pressure Control: Can prepare 30 programs and each program can prepare 40 steps.Both linear and nonlinear are applicable to program control.

Curve Display: Set temperature curve, liquid supply temperature curve, liquidreturn temperature curve,set pressure curve, liquid supply pressure curve, liquid return pressure curve, set flow curve, liquid supply flow curve

Data Storage (alarm data): Sensor abnormal alarm, high temperature protection, low temperature protection, high pressure protection, low pressure protection, low liquid level alarm, high liquid level alarm, heating rod anti dry burning alarm, etc

Data Export: USB2.0/3.0 export, standard 16G flash drive

Communication Interface: CAN/RS485/RS232/LAN

Optional: Automatic liquid filling function; Purge and recover coolant; Emptying function
