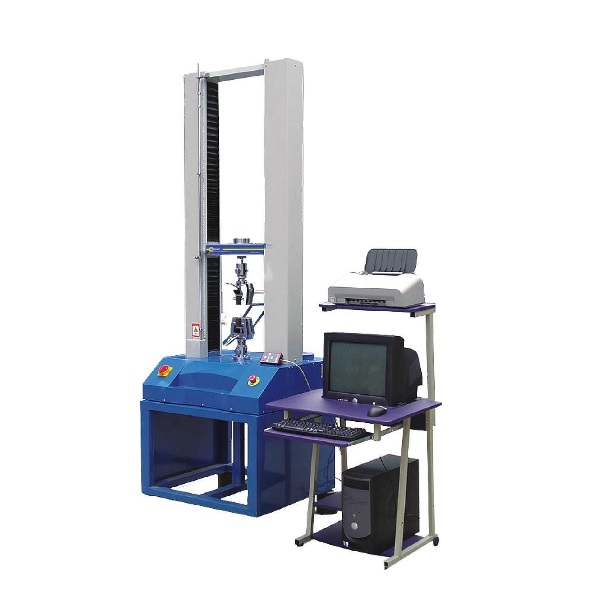

TONYHK HTP-004 Dual Arm Computer Servo Tensile Strength Test Machine

Maximum force capacity: 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN (choose)

Force measurement accuracy: 0.5%

Test stroke: 1000mm, effective test width: 400 mm, or specified per customer

Test force loading the measuring range: 0.4% -100% FS

Resolution: maximum test force of 1/200000

Test speed: 0.01 - 500mm / min. or specified per customer.

Displacement measurement accuracy: ± 0.5% of indication

Test force control rate adjustment range: 0.05% -5% FS/S

Control accuracy: ± 0.5% when the control rate  ≥ 0.05% FS/S,

Net Weight: 150kg, Gross weght: 220 kg (after wooden package)

Package wooden box size: 67x102x193cm

Datasheet
