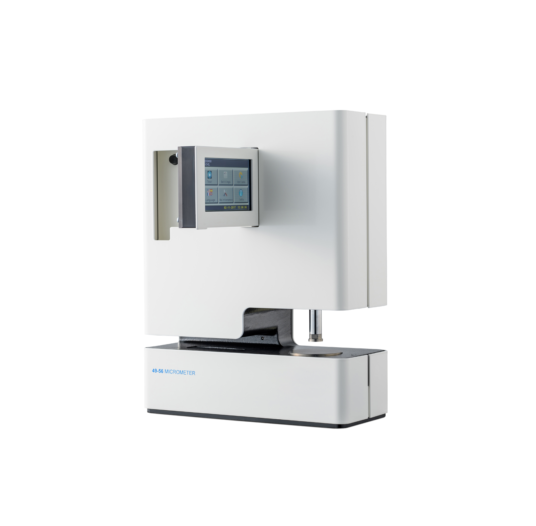

TQCSheen 49-56 Digital Micrometer (0–10mm; 0–10.000μm; 0–394mil)

Measuring units: μm, MM and mil

Measuring range: 0–10mm;  –10.000μm; 0–394mil

Accuracy: within 0.001mm (0.00004 in.) or 1% of paper thickness, whichever is better

Resolution: 1.0/0.1 μm (0.01 mil/0.001 mil) on request

Anvil dimension: several options

kPA: several options (Contact us with your requirements)

Lowering speed: 0.8 -5.9 mm/sec

Languages: 9

Installation requirements:

Electrical: 90–230V and 50/60Hz

Dimensions LxWxH: 265x110x335mm (10.4x4.3x13.2 inch)

Weight: ±13kg (28.6lbs)

Output: RS232 and Printer connection

Optional accessories:

GraphMaster © software

Strip feeder

Foot switch

Support table
