Humidity:
Accuracy (0…80°C, 0…176°F): ±3%RH
Measurement resolution: 0.1%
Measurement range: 0…100%RH
Temperature:
• Temperature Ta (Air):
Accuracy: ±0.5°C, ±1°F (over the full measurement range)
Measurement resolution: 0.1°C, 0.1°F
Measurement range: - 20…+ 80°C, - 4…+176°F
• Temperature Ts (Surface):
Accuracy: ±0.5°C, ±1°F (over the full measurement range)
Measurement resolution: 0.1°C, 0.1°F
Measurement range: - 30…+60°C, - 22…+140°F
• Temperature Ts (Surface External)
Accuracy: ±0.5°C, ±1°F (over the full measurement range)
Measurement resolution: 0.1°C, 0.1°F
Measurement range: - 30…+ 60°C, - 22...+140°F
Display: Graphical presentation with backlight.
Operating temperature range: - 20°C…60°C, - 4...+140°F
Memory:
Type: Dynamic
Memory size manual logging: 6000 records
Record content manual logging: time/date, humidity, Ta, Ts, Td, Tdelta, status byte for alarm
Memory size interval logging: 12000 records
Record content interval logging: Humidity, Ta and Ts. Other parameters and date and time are calculated
Batches: 8 batches max.
Measurement/features:
Limits: Adjustable for each parameter
Lo-hi alarms: beep sound, symbol in display and RED led
Hold function: Yes
Data storage: two modes: Manual and interval (auto)
Data recall: Gauge display average, min/max of each batch
Scope of supply:

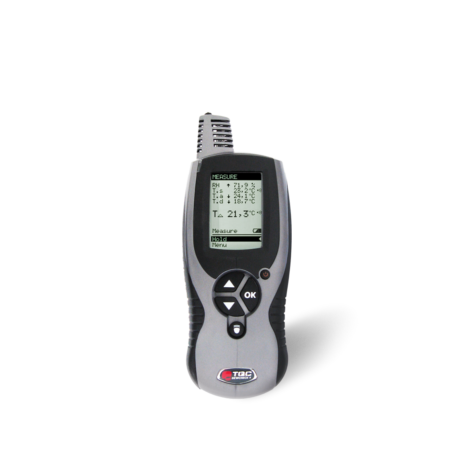

TQC dewcheck 4 dewpoint gauge
Leather pouch
Wrist strap
USB cable
Calibration certificate included
Accessories
DC7520: Docking Station for Dewcheck Series 2
DC7510: USB communication cable
DC7010: Spare leather pouch
