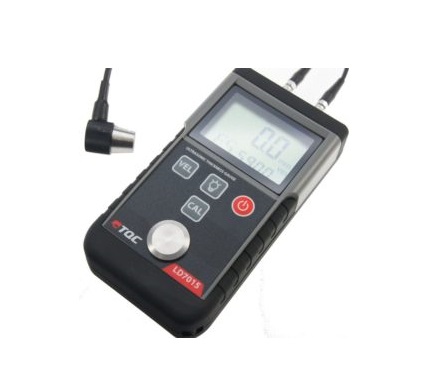

TQCSheen LD7015 초음파 두께 게이지 (1.2-220mm; 0.1mm; Basic)

Measuring method: Ultrasonic pulse echo

Measuring frequency: 5MHz

Measuring range: 1.2-220mm (steel); (deviation possible with use of other materials)

Measuring range (tubes): 20x3mm (steel)

Accuracy: ±(1%H ± 0.1) mm

Display: LCD

Resolution: 0.1mm

Operation temperature: 0ºC~40ºC

Batteries: 3x AAA alkaline batteries (total 5V)

Size: 70x135x38mm

Scope of Supply:

• TQC Ultrasonic Thickness Gauge

• Ultrasonic gel 60ml

• Probe 10mm-5.0MHz

• Manual

Accessories:

LD7025 – TQC ultrasonic gel 50ml

LD7030 – TQC ultrasonic gel 250ml

Datasheet

Manual
