Strap Width: 5 mm, 6 mm, 9 mm or 12 mm
Tension Range
1-32 kg (for 5 mm, 6 mm, 9 mm)
1-55 kg (for 12 mm)
Capacity: Up to 40 packages/minute (Cycle speed up to 65 cycles/minute)
Weight: 250 kg
Pneumatic Source: 6 bar
Air Consumption: 7.5 liter/cycle
Electrical Requirements
110V, 220V, 230V, 240V 50/60Hz 1PH
220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Siemens PLC
Light tower with low strap sensor
Energy saving transit with auto sleep mode
Strapping in the center of the bundle
Extension belt-driven table of 200 mm on upstream and downstream sides
Lower adjustable table height (750 mm – 900 mm)
VIDEO
Watch as refernce: TP-702B Fully Automatic Strapping Machines - TRANSPAK
Datasheet

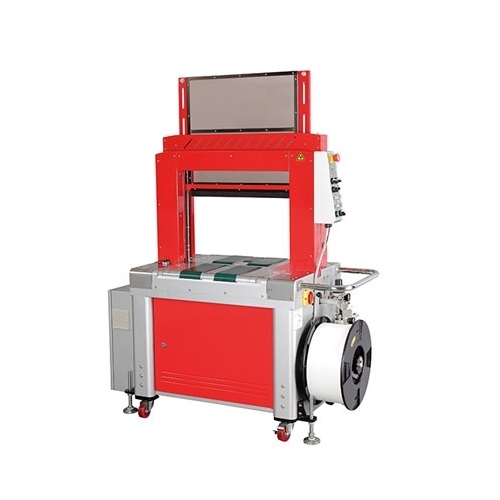

Mercury Transit TP-702BP is a fully automatic strapping machine with compression press for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702BP is the fastest and most reliable strapping machine for general applications on the market today.
Features
Robust & compact mechanical strapping head
With pneumatic press
Waist-high auto strap feeding
Free access to strap guides (patents registered)
Electronic tension control
Auto strap ejector
Hinged top plates
Multiple strap function for single, double, continuous strapping, or transit mode
Variable conveyor speed between 10 and 60 meters/minute
Up and down stream interlock with complete plug connection
Easy bundle flow direction change
Good to strap small package with minimum size 120 mm in width and 10 mm in height
Adjustable table height between 800 mm and 900 mm
