Capacity: Up to 35 cycles/minute
Strap Width: 5mm, 6 mm, 9 mm, or 12 mm
Tension Range
1 - 32 kg (for 5 mm, 6 mm, 9 mm)
1 - 45 kg (for 12 mm)
*Higher tension is on request
Weight: 340 kg
Electrical Requirements
110V, 220V, 230V, 240V 50/60Hz 1PH
220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Light tower with low strap sensor
Small Package
Siemens PLC
Energy saving transit with auto sleep mode
Side pusher
Dual press bar
Video
Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK
Datasheet

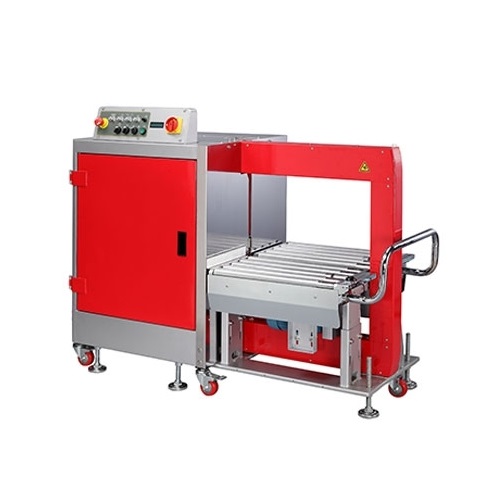

Mercury Transit TP-702YA is a high-speed fully automatic side-seal strapping machine. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc. Inheriting all the advantages from Mercury TP-702, it is ideal for high capacity and efficiency automated lines.
Features
Robust and compact strapping head
High strapping speed up to 35 packages per minute
Control panel with LCD display
Free access to strap guides (patents registered)
Downward tension force
Up and down stream interlock
Inner strap dispenser design
Adjustable table height from 445 mm to 645 mm
