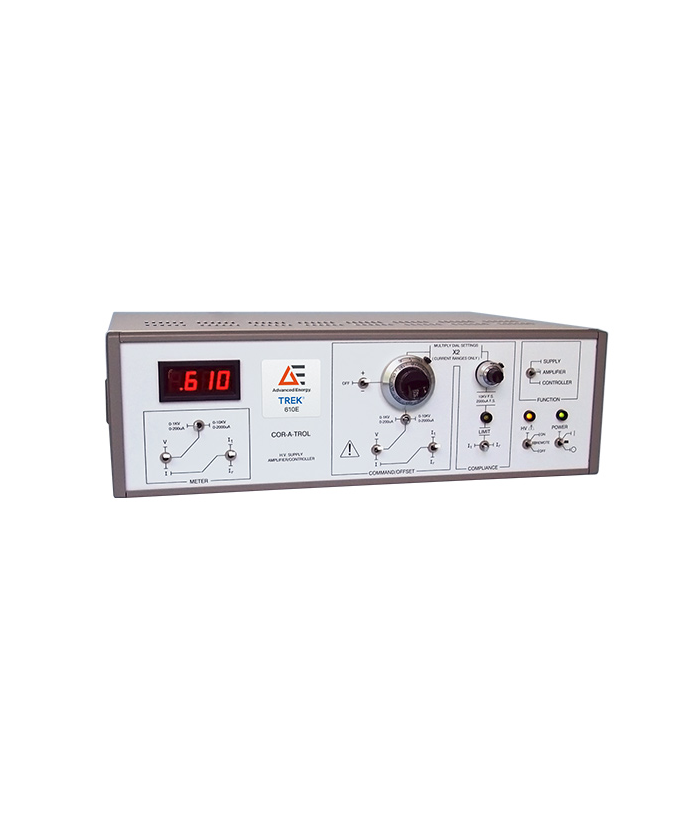

TREK 610E-F High Voltage Amplifier (0 to ±1 kV or 0 to ±10 kV, 100VAC)

Output Voltage Range: 0 to ±1 kV or 0 to ±10 kV

Output Current Range: 0 to ±200 μA or 0 to ±2000 μA peak AC

Slew Rate: Greater than 35 V/μs

Large Signal Bandwidth (-3 dB): DC to greater than 1.2 kHz

Voltage Gain

1 kV range: 100 V/V

10 kV range: 1000 V/V

*For detailed specifications, please refer to the datasheet

Datasheet
