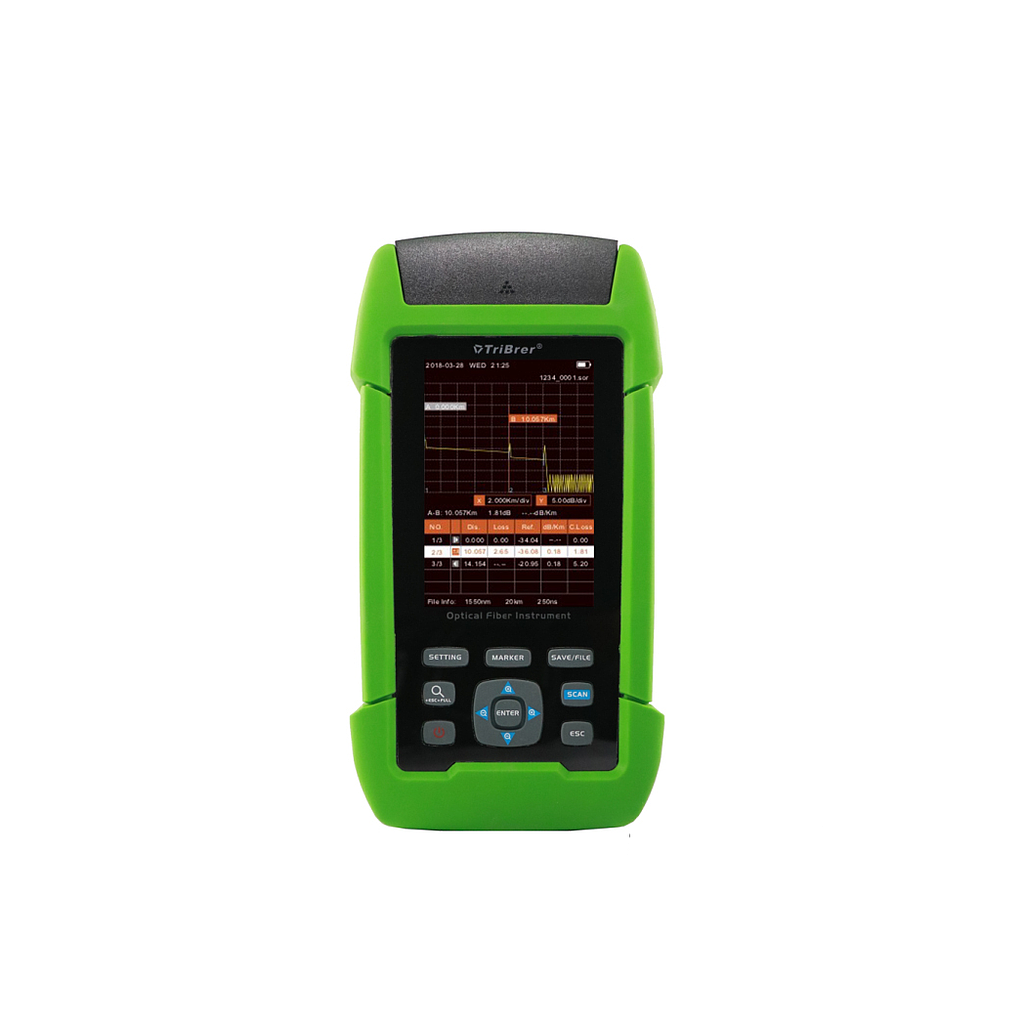

TriBrer TB-600 OTDR Meter (+26~-50dBm, 850/1300/1310/1490/1550/1625nm)

Dynamic range: 0 dB

Maximum distance: Up to 80 km

Wavelength: 1550 nm

Connector type: FC / UPC

Power measurement: +26 ~ -50 dBm, 850/1300/1310/1490/1550/1625 nm, 2.5 mm UPP

Measurement time setting: 5 ~ 180 s

Event dead zone: 3 m

Attenuation dead zone: 8.0 m

Pulse width: 5 ns ~ 10 µs

Attenuation resolution: 0.001 dB

Minimum resolution: 0.1 m

VFL (Visual Fault Locator): 1 mW

Storage: Internal memory or memory card

Display: 3.5-inch LCD screen

Interface: Micro USB

Battery: 3.7V 2400 mAh lithium polymer battery

Dimensions: 168 mm × 95 mm × 38 mm

Weight: 333 g

Operating temperature: 0 ~ +50°C

Storage temperature: -20 ~ +70°C
