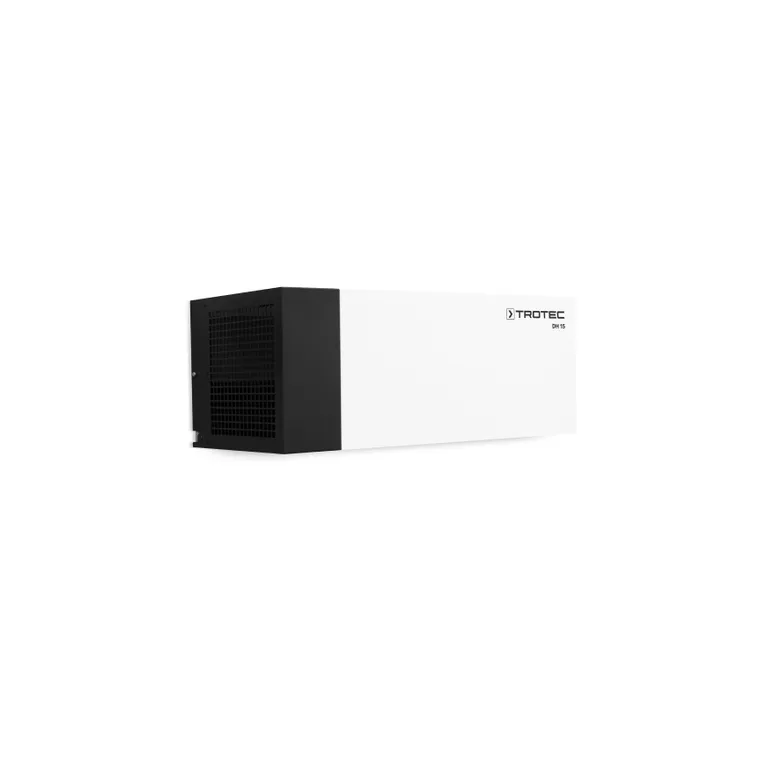

Trotec DH 15 산업용 응축기 건조기 (22l/24h; 225 m³/h)

Dehumidification performance: At 20 °C / 60 % RH [l/24h]: 11;   At 30 °C / 80 % RH [l/24h]: 22

Power supply:  220-240 V~50 Hz

Power cable:  CEE 7/7/1=3.5 m

Power input:  657 W

Nominal/peak current:  3.7 A/18 A

Heat emission:  0.9 kW

Coefficient of performance: 1.6

Refrigerant:  R-407C

GWP factor:  1.773.85

CO2 equivalent:   0.851 t

Amount of refrigerant:  480 g

Air volume (freely blowing):  225 m3/h

Sound pressure level @ 3 m:  49 dB(A)

Operating range temperature:  5 to 40 °C

Setting range relative humidity:  30% to 60% RH

Max. permissible relative humidity:  90 % RH

Weight:  37 kg

Dimensions (length x width x height) incl. wall holder:  365 x 840 x 330 mm

Minimum distance to walls or other objects:

A: top: 12.5 cm

B: bottom: 12.5 cm

C: side: 12.5 cm

D: front: 12.5 cm
