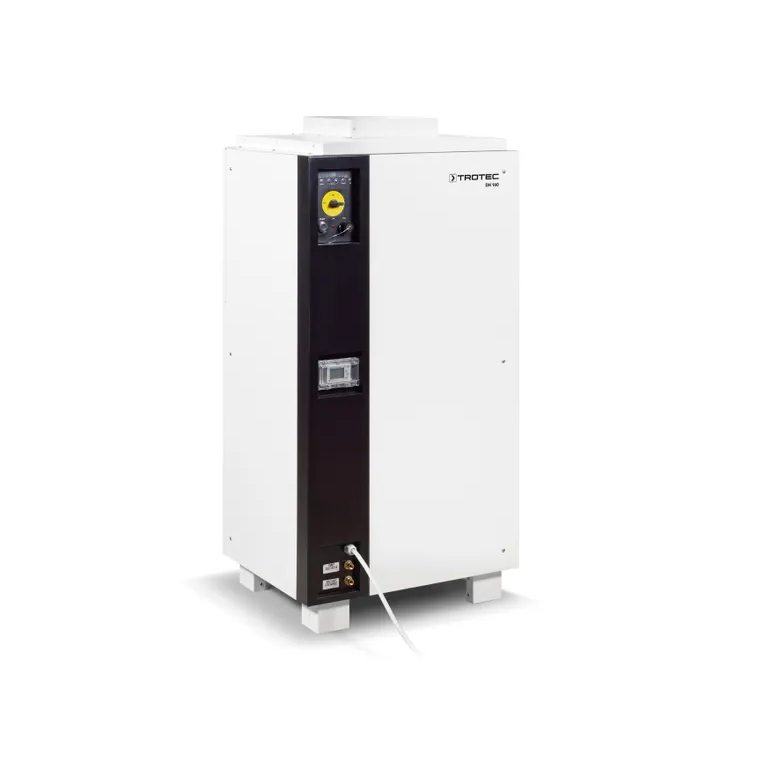

Trotec DH 160 BX 산업용 응축기 건조기 (252l/24h; 2200m³/h)

Dehumidification performance at 30 °C / 80% [l/24h]: 252

Amount of air [m³/h]: 2200

Compressor :Scroll compressor

Voltage: 3 x 400V/ 50Hz/N/ PE

Nominal current consumption [A]: 9.5

Fuse [A] :16

Power input [kW]: 3.5

Electrical connection: CEE 16A. 5-pole

Sound Level 3m [dB(A)]: 59

Operating range temperature [°C]: 1.5 –42

Cooling agent Typ:e R-407C

Cooling agent Amount [g]: 2250

GWP factor: 1774

CO2 equivalent [t]: 3.99

Condensate discharge connection [mm]: 16

Weight (packaging excluded) [kg]: 150

Dimensions (Length x Width x Height) [mm]:560 x 700 x 1355
