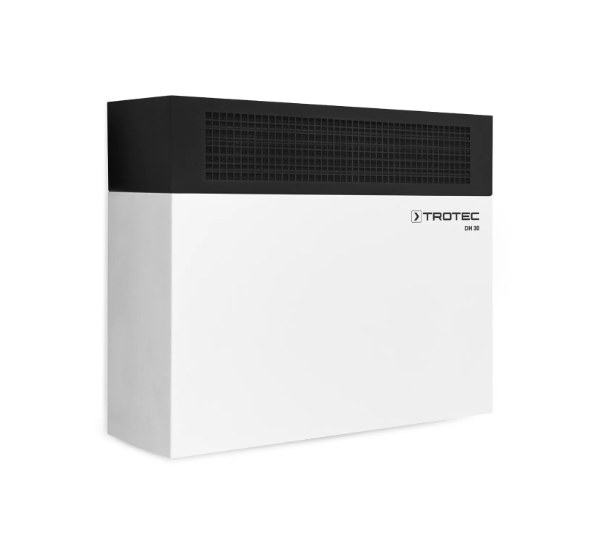

Trotec DH 30 H 산업용 응축기 건조기 (2.8kW; 7.5 +12.2 A)

Dehumidification performance: see performance charts on page 24

Heating capacity [kW]: 2.8

Voltage [V / Hz]: 220-240 / 50

Nominal current consumption [A] 4.4 + 12.2

Starting current [A]: 15.8

Fuse [A]: 2x16

Electrical connection (plug): clamp

Power input [kW]: 0.98 + 2.8

Heat emission [kW]: 1.9

Coefficient of performance (COP) ¹: 2.5

Refrigerant :

Type: R-407C

Amount [g]:  500

GWP factor:  1,774

CO2-equivalent ³ [t]: 0.89

Air volume freely blowing [m³/h]: 635

Sound level (distance 3 m) [dB(A)]: 52

Operating range temperature [°C]: 5 to 40

Operation range max. RH [%]: 90

Length x width x height [mm]: 225x790x651

Weight [kg]:  47

Condensate discharge connection [mm]: 10
