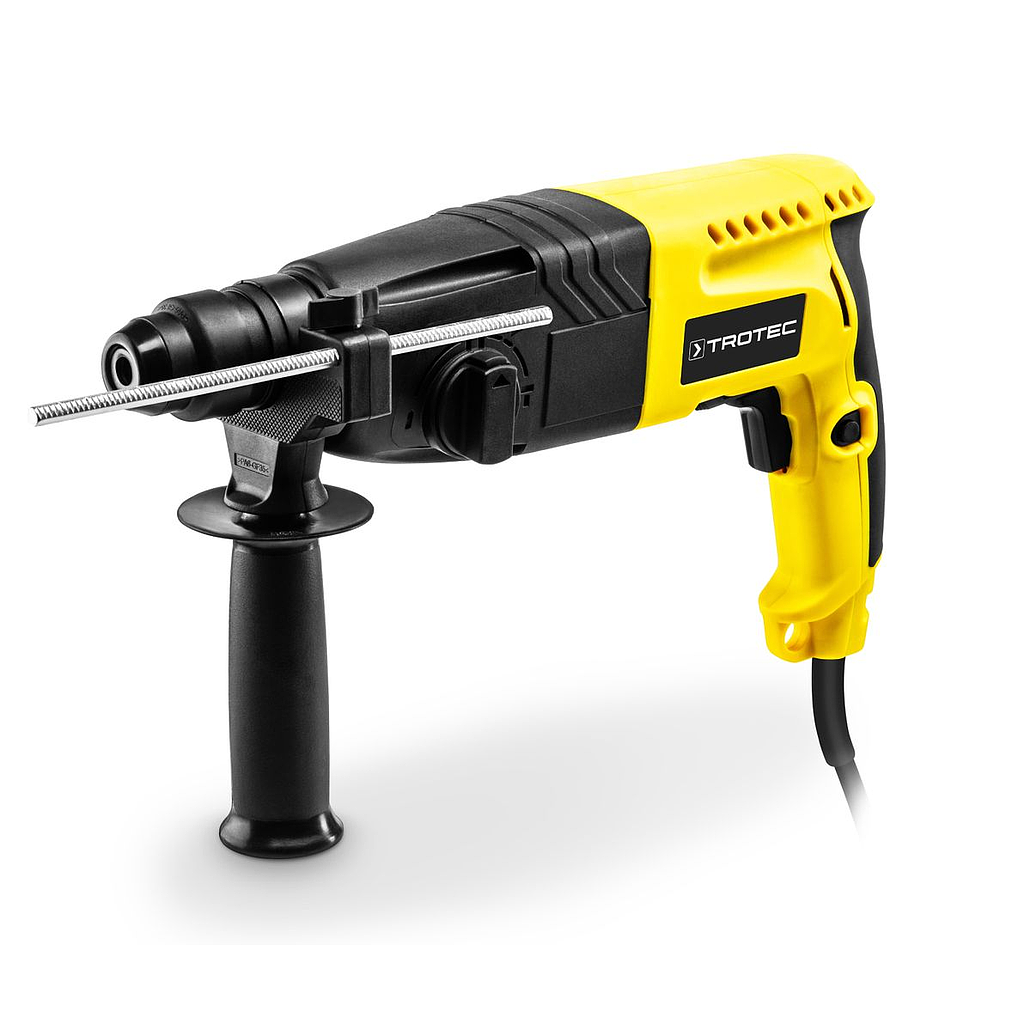

Trotec PRDS 05‑230V 드릴 (0 - 6400 min-1; 2.1 Joule)

Technical data:

Idle speed 1. Speed level: 0 - 1.250

Impact frequency combined 1. Speed level: 0 - 6.400 min-1

Impact energy [Joule]: 2.1

Maximum drilling diameter:

Wood [mm]: 30

Metal [mm]: 13

Masonry / bricks [mm]: 24

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 620

Connection plug: CEE 7/17

Cable length [m]: 3

Protection class: II

Sound values according to EN 60745:

Sound pressure level hammer drilling [[dB(A)]]: 84.94

Sound power level hammer drilling [[dB(A)]]: 95.94

Uncertainty (K) [dB]: 3

Sound pressure level chiselling [[dB(A)]]: 91.26

Sound power level chiselling [[dB(A)]]: 102.26

Uncertainty (K) [dB]: 3

Vibration information according to EN 60745:

Vibration emission value (ah) Impact drilling in brickwork with main handle [m/s²]: 12.875

Uncertainty (K) Impact drilling in brickwork with main handle [m/s²]: 1.5

Vibration emission value (ah) Impact drilling in brickwork with additional handle [m/s²]: 11.953

Uncertainty (K) Impact drilling in brickwork with additional handle [m/s²]: 1.5

Dimensions:

Length (packaging excluded) [mm]: 355

Width (packaging excluded) [mm]: 85

Height (packaging excluded) [mm]: 210

Weight:

(packaging excluded) [kg]: 3
