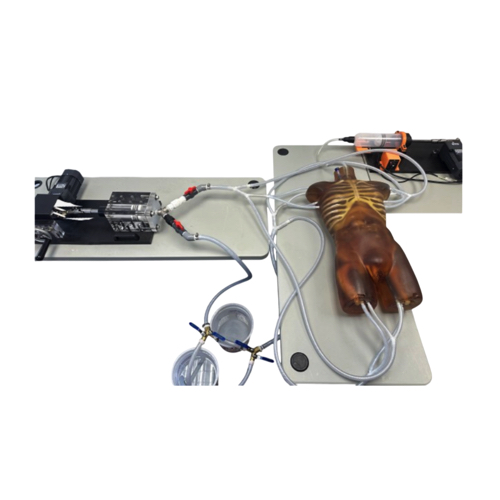

Phantom
Size: 34 × 18 × 10 inches
Weight: 88 lbs (approx.)
Heart Pump
Size: 36 × 12 × 8 inches
Weight: 88 lbs (approx.)
Lung Pump
Size: 36 × 12 × 8 inches
Weight: 48 lbs (approx.)
Organs with Speckles (liver, kidneys, etc.)
Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz
1435 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / VARIABLE / 1.0 ± 0.2 dB/cm
Organs without Speckles (stomach, intestines, etc.)
Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz
1400 ± 10 m/s / 0.99 g/cm³ / 20 Shore 00 / 70 ms / NO / 1.0 ± 0.2 dB/cm
Body Tissue
Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz
1410 ± 10 m/s / 1.00 g/cm³ / 35 Shore 00 / 65 ms / NO/LOW / 1.2 ± 0.2 dB/cm
Cortical Bone
Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz
3000 ± 30 m/s / 2.31 g/cm³ / N/A / N/A / N/A / 6.4 ± 0.3 dB/cm
Trabecular Bone
Sound velocity / Density / Hardness / T2 / Speckles / Attenuation at 2.25 MHz
2800 ± 50 m/s / 2.03 g/cm³ / N/A / N/A / N/A / 21 ± 2 dB/cm
