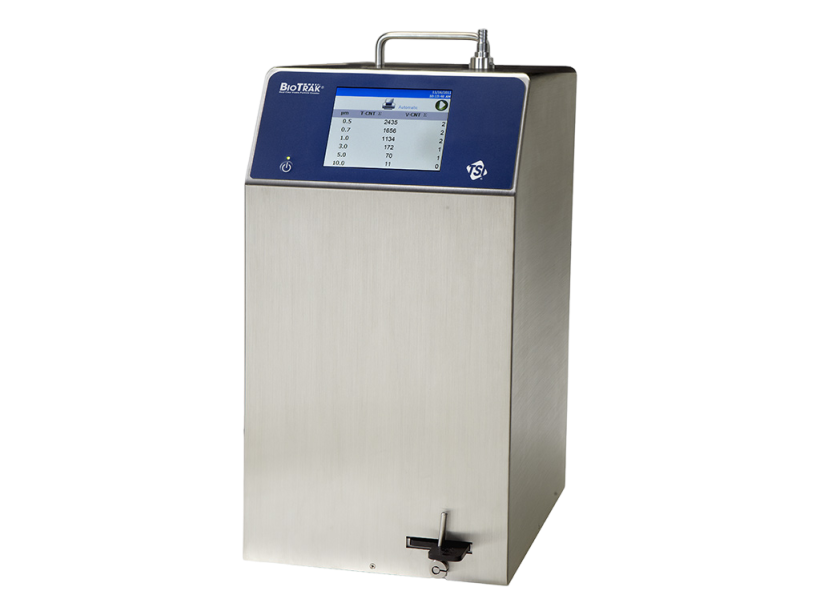

TSI 9510-BD Real-Time Viable Particle Counter (0.5 to 25 μm)

Size Range: 0.5 to 25 μm.

Particle Size Channels: 0.5, 0.7, 1.0, 3.0, 5.0, 10 μm.

Size Resolution: <15% @ 0.5 μm (per ISO 21501-4).

Counting Efficiency: 50% at 0.5 μm; 100% for particles >0.75 μm (per ISO 21501-4 and JIS).

Viable Detection: 2 fluorescence channels and 1 size channel for classification.

Sample Collection: Integrated filter holder for 37-mm membrane filter.

Concentration Limit: 820,000 particles/ft³ (29,000,000 particles/m³) @ 10% coincidence loss.

Flow Rate: 1.0 CFM (28.3 L/min) with ±5% accuracy.

Light Source: Total particles: 660 nm laser diode; Viable particles: 405 nm laser diode (fluorescence detection).

Flow Control: Electronic, automatic closed-loop (patented technology).

Alarms: Built-in audible alarm >85 dB at 1 meter; external alarm relay.

Display: 5.7-inch (14.5-cm) VGA touchscreen.

Enclosure: Stainless steel.

Dimensions (H x W x D): 48.3 cm x 26.7 cm x 29.7 cm.

Weight: 16.8 kg (37 lbs).

Sampling Modes: Manual, automatic, beep; cumulative/differential; count or concentration.

Data Storage: 250 zones, 999 locations, and 10,000 sample records.

Languages: English, German, French, Spanish, Japanese, Chinese, Italian.

Software: TrakPro™ Lite Secure and FMS Software (OPC UA Bridge 5SP).

Data Transfer Modes:

Manual: Export .xml files via USB or Ethernet.

Automatic: Connect to FMS software via Ethernet or OPC UA.

Operating Temperature: 5°C to 30°C (41°F to 86°F).

Operating Humidity: 20% to 85% RH, non-condensing.

Maximum Altitude: 3,000 m (10,000 ft).
