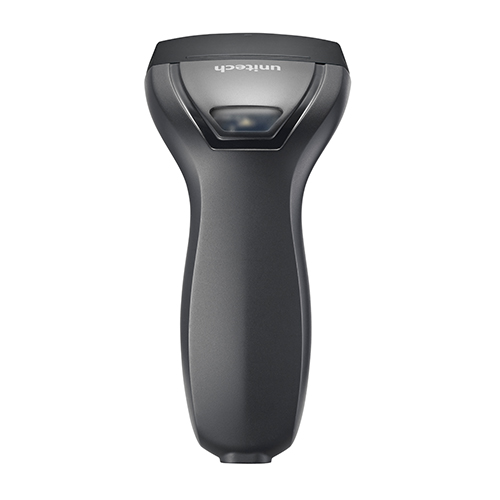

Unitech MS250 High Performance Contact Scanner (1D) (200 scans/ second ±10%; 3mil)

Sensor: Linear CCD sensor

Scan Rate: 200 scans/second ±10%

Pitch Angle: Forward & backward ±10°~30° (±5°) Left & Right ± 60° (±5°)

Print Contrast: 45%

Depth of Field: Field width: 80mm Reading distance: Up to 90mm @ 20mil, PCS90%, Code39

Connection Port: USB / RS232

Dimensions: 87.8 L x 71.6 W x 177.7 H (mm)

Weight: 165g without cable

Barcode Reading: 1D

Operating Voltage: 4 VDC to 5.5 VDC

Current Consumption: Operating: 252mA Standby: 77mA

Mechanical Shock: 1.5m

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Storage Temperature: -20°C to 60°C ( -4°F to 140°F)

Humidity: 5% to 85% relative humidity, non-condensing

Standard: IP42

Accessories (Optional):

■ Standard hands-free stand (Optional)

■ Auto-sensing hands-free stand (Optional)

Certifications: CE, FCC, BSMI, VCCI

Optical Resolution: 3 mil (0.076mm) @ PCS90%

Communication: Wired

Button Life: 10 million times

Indicators: Beeper, LED light
