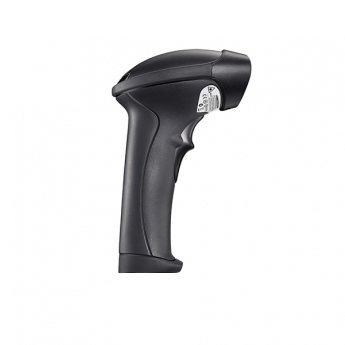

Unitech MS842P ESD Wireless ESD-safe 2D Imager Scanner (SR: 5 mil/ 6.7 mil; HD: 3 mil/ 4 mil)

Sensor: 2D Imager

Pitch Angle: ± 60°

Optical Resolution:

SR: 5 mil (Code 39), 6.7 mil (PDF417)

HD: 3 mil (Code 39), 4 mil (PDF417)

Depth of Field:

Code 39 5 mil: 5.3 to 19.1 cm (SR)

PDF417 6.7 mil: 8.6 to 18 cm (SR)

Code 39 3 mil: 4.1 to 9.7 cm (HD)

PDF417 4 mil: 4.6 to 8.9 cm (HD)

Communication: 2.4GHz unlicensed (Wireless)

Supported Host Interface: USB (via Cradle or dongle)

Dimensions: 176x74x89mm

Weight: 210g (without cable)

Trigger Switch Life: 10 million cycles

Barcodes: 1D, 2D

Operating Voltage: DC 3V to 5V

ESD Protection: Functions after 8K Contact and 12K Air

Drop Shock Resistance: 1.8m to concrete (scanner only)

Operating Temperature: 0°C to 50°C

Storage Temperature: -30°C to 70°C

Standard: IP42

Accessories (Optional):

■ Cradle

■ Dongle

■ Battery Pack

■ Power Adapter

■ USB Cable

Certifications: CE, FCC, BSMI, VCCI, TAA compliant

Wireless Coverage: 10M (line of sight)

Battery Capacity: 1620mAh

Operating Time: More than 10 hours
