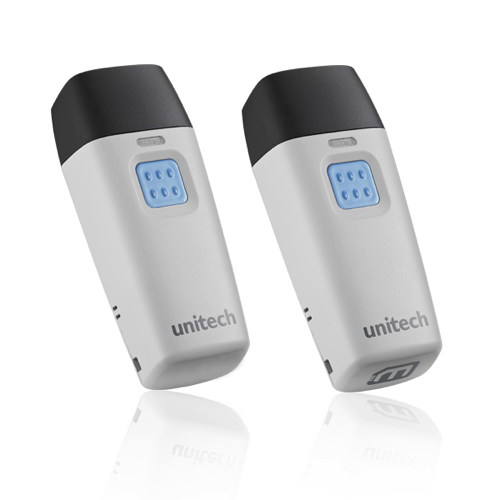

Unitech MS912 plus Bluetooth CCD Pocket Scanner (4 mil/ 0.1mm 140mm)

Sensor: Linear CMOS

Aiming Element: Visible red LED 625nm

Optical Resolution: 4 mil/ 0.1mm 140mm (13Mil Code 39)

Depth of Field:

4 Mil Code 39: 40 ~ 65 mm

5 Mil Code 39: 35 ~ 90 mm

10 Mil Code 39: 35 ~ 195 mm

15 Mil Code 39: 50 ~ 280 mm

13 Mil UPC/EAN: 35 ~ 230 mm

Communication: Bluetooth 2.1+EDR

Dimensions: H20W30L72mm

Weight: 30.2g

Barcodes: 1D

Operating Voltage: 3.7VDC ± 5% 6000 scans (1 scan/ 5 seconds, PAN connected)

Current Consumption: Operating Mode: < 500uA (MS912+)

ESD Protection: Functions after 4KV contact, 8KV air discharge

Mechanical Shock: 1.5m

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Certifications: EMC: FCC Part15C, CE Safety Approvals: WEEE, RoHS 2.0, IEC 62471, NCC, TELEC, VCCI, BSMI

Memory: 2MB

Interface: BT HID, BT SPP, USB HID, USB VCP, Memory (MS912M+)

Battery Type: Lithium Battery 3.7V, 350mAh

Operating Time: 6000 scans

Scan Rate: 650 scans/second

Wireless Coverage: 10m (line of sight)
