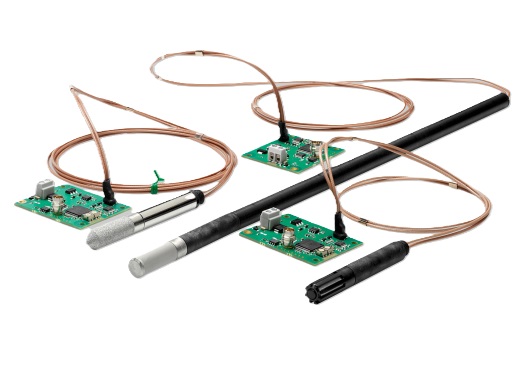

VAISALA HMM100 Humidity Module (0 ... 100 %RH, ±1.5 %RH)

- Relative Humidity:

Measurement range: 0 … 100 %RH

Factory calibration uncertainty (+20 °C / +68 °F): ±1.5 %RH

Humidity sensor types: HUMICAP 180R; HUMICAP 180

- Dew Point Temperature:

Measurement range: −20 … +100 °C (−4 … +212 °F) Td

Accuracy: ±2 °C (±3.6 °F) Td

- Power consumption: 6 mA

- Max. wire size: 0.5 … 1.5 mm2 (AWG)

- Service port: M8 connector for USB cable

- Service cable connector: M8 4-pin male

- Probe diameter: 12 mm (0.5 in)

Datasheet
