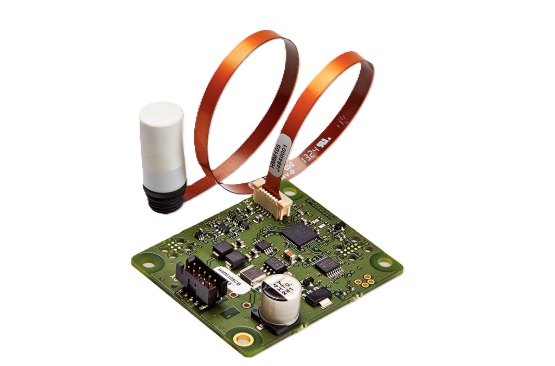

VAISALA HMM105 Digital Humidity Module (0 ... 100 %RH, ±1.5 %RH)

- Relative Humidity:

Measurement range: 0 ... 100 %RH

Factory calibration uncertainty (+20 °C): ±1.5 %RH

Humidity sensor: Vaisala HUMICAP 180R

- Dew Point Temperature:

Measurement range: -20 ... +100 °C (-4 ... +212 °F)Td

- Supply voltage: 10 … 35 VDC, 24 VAC (±20 %)

- Output voltage: I2C 5 V

- Power consumption (DC/AC): < 15/25 mA

- Probe diameter: 12 mm

- Probe flex cable length: 0.3 m

- Probe lead-through material: PPS plastic

Datasheet
