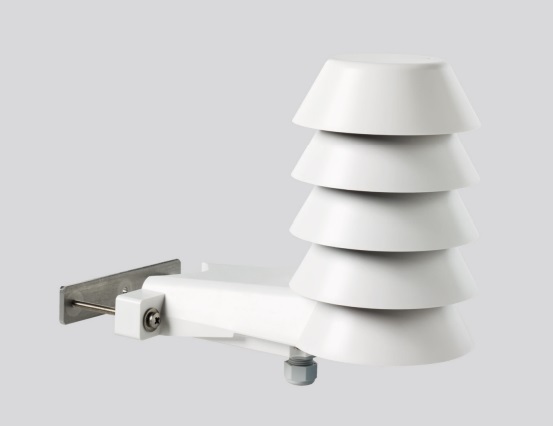

VAISALA HMS82 Humidity and Temperature Transmitter (2-wire, current output, 4 … 20 mA)

- Sensor: INTERCAP

- Current Output Model HMS82 (2-wire):

Outputs: 4 … 20 mA, loop powered

Loop resistance: 0 … 600 Ω

Supply voltage:

20 … 28 VDC at 600 Ω load

10 … 28 VDC at 0 Ω load

- Max. wire size: 1.5 mm2 (AWG 16)

- Standard housing color: White (RAL9003)

- Housing material: PC + 10 %GF (UL-V0 approved)

- IP rating: IP65

- Relative Humidity: Measurement range 0 … 100 %RH

- Temperature: Measurement range -40 … +60 °C (-40 … +140 °F)
