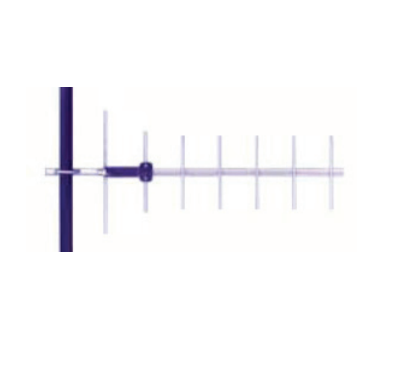

Viavi G700050365 RF Yagi Antenna (866 ~ 960 MHz)

Mechanical Data:

Dimension: Length 660 mm (25.98 in)

Weight: < 907 g (2 lbs.)

Material: ½” aluminum U channel boom, ¼” solid elements, UV inhibited polyester coat

Connector Type: N jack (female)

Withstand Wind Pressure: 125 MPH

Electrical Data:

Frequency Range: 866 to 960 MHz

Gain: 10.2 dBi

Beam Width: 55° (Horizontal) / 50° (Vertical)

VSWR: < 2.0:1

Impedance: 50 Ω

Maximum Power: 300 W

Datasheet
