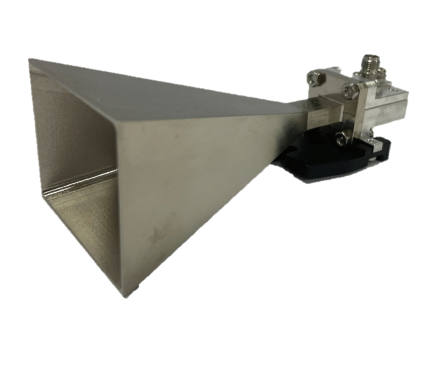

Viavi G700050371 RF directional horn antenna kit (22 – 33 GHz)

Mechanical Data:

Dimension: 118 × 54 × 42 mm (4.65 × 2.13 × 1.65 in)

Connector: K jack (female)

Electrical Data:

Frequency Range: 22000 to 33000 MHz

Polarization: Linear

Gain: 20 dB typical

Beam Width: 13° to 18°

VSWR: ≤ 1.4:1

Impedance: 50 Ω nominal

Description: RF directional horn antenna kit that includes a 22 to 33 GHz horn antenna, a tripod handle, a 40 GHz cable, and a hard carrying case.

Datasheet
