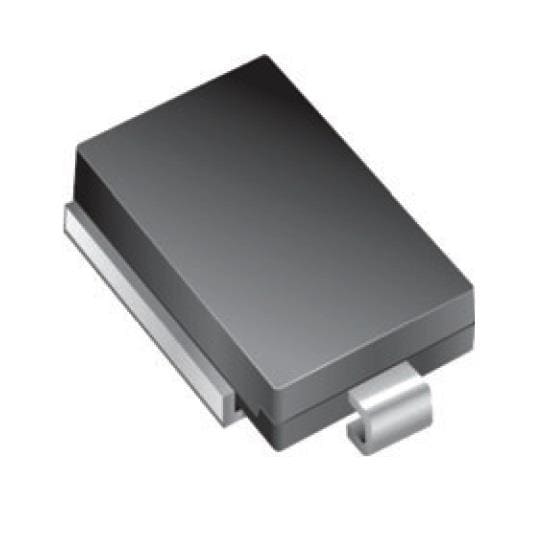

Vishay General Semiconductor SM8S36ATHE3/I ESD 서프레서 8W,36V 5%,SMD PAR

Polarity: Unidirectional

Unit Weight: 2.605 g

REACH - SVHC: Details

Qualification: AEC-Q100

Working Voltage: 36 V

Clamping Voltage: 58.1 V

Breakdown Voltage: 40 V

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Vf - Forward Voltage: 1.8 V

Pd - Power Dissipation: 8 W

Ipp - Peak Pulse Current: 114 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 6.6 kW
