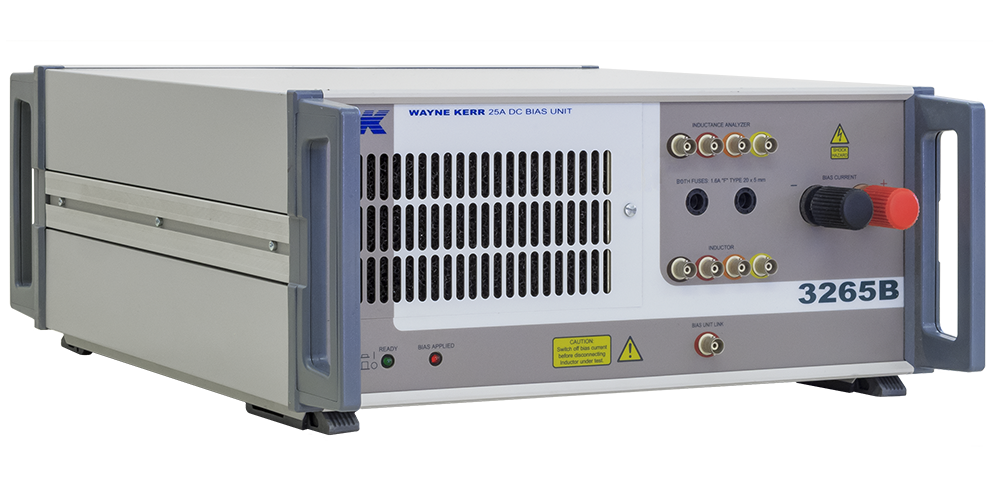

Wayne Kerr 3265B DC Bias Current Sources (20Hz ~ 3 MHz)

Measurement Function: L, Z, R, Q, D.

Frequency Range: 20 Hz to 3 MHz

Compliance Voltage:

   Maximum compliance votage (<12 kHz) 11 V DC at 0.25 V AC drive level.

   10 V compliance at 1 V AC drive level. For f>12 kHz deduct 0.5 V.

Basic Accuracyy: ±1%, Varies with measurement speed, frequency and options chosen.

Measurement Speeds: 4 speeds selectable (20/sec max)

Input Specification:

   Universal 90 to 255 V AC, 47 to 63 Hz

   Input current 9 A rms max.

   Unit powers up automatically when connected to a powered  analyzer. Isolating switch provided

Measurement Connections:

   2-terminals measurement via M8 studs.

   4-terminal measurement via Kelvin leads and M8 studs.

   Measurement terminals internally protected by 1.6A fuses against

normal inductor back-EMF or accidental disconnection of inductor.

  Front panel fuses easily replaced.
