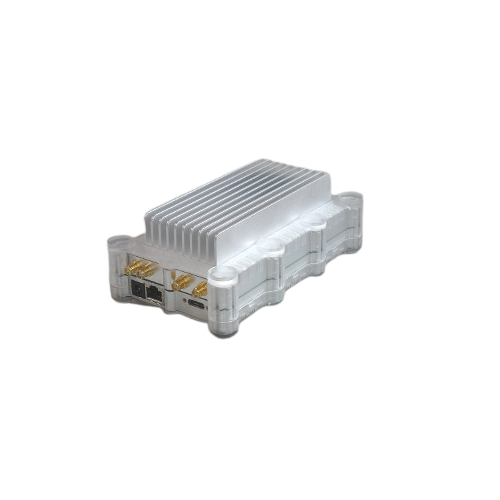

Receiver type: Digitally down-converting software-defined receiver with two independent and mutually exclusive inputs, one per each range.
Frequency ranges:
Range 1: 8 kHz to 80 MHz (direct sampling)
Range 2: 43 MHz to 8 GHz (superheterodyne)
Tuning resolution: 1 Hz
Mode: AM, AMS, LSB, USB, DSB, ISB, CW, FMN, FMW, FSK, UDM (user-defined mode), DRM mode (optional)
- Range 1: 8 kHz to 80 MHz
Image Rejection: 90 dB typ.
P1dB: -8 dBm typ.
IP3: +30 dBm typ.
Input damage level: +30 dBm
SFDR: 105 dB
Noise figure: 16 dB
MDS: -128 dBm @ 10 MHz, 500 Hz BW
LO Phase noise: -145 dBc/Hz @ 10 kHz
- Range 2: 43 MHz to 8 GHz
Image Rejection: 60 dB typ.
P1dB: -15 dBm typ. (Preamp OFF); -32 dBm typ. (Preamp ON)
IP3: +6 dBm typ. (Preamp OFF); -11 dBm typ. (Preamp ON)
Input damage level: +30 dBm
SFDR: 90 dB (Preamp OFF); 85 dB (Preamp ON)
Noise figure: 15 dB typ. (Preamp OFF); 6 dB typ. (Preamp ON)
MDS: -129 dBm @ 800 MHz, 500 Hz BW (Preamp OFF)
-138 dBm @ 800 MHz, 500 Hz BW (Preamp ON)
LO Phase noise: -106 dBc/Hz @ 10 kHz typ.
- Common specifications for both Range 1 and Range 2:
Internal spurious: below -100 dBm
RSSI accuracy: 2 dB typ.
RSSI sensitivity: -140 dBm
Processing and recording bandwidth:
20 kHz - 32 MHz over USB 3.0
20 kHz - 6.4 MHz over USB 2.0
20 kHz - 16 MHz over 1Gbps LAN
Demodulation bandwidth (selectivity): 1 Hz - 320 kHz (continuously variable in 1 Hz steps)
Spectrum analyzers:
Input spectrum/waterfall, 80/34 MHz BW, 2.6 kHz RBW
DDC spectrum/waterfall, 32 MHz BW, 1 Hz RBW
Channel spectrum, 320 kHz BW, 1 Hz RBW
Demodulated audio, 64 kHz BW, 1 Hz RBW
ADC: 16 bit, 200 MSPS
Tuning stability: 0.1 ppm (0 to 50 °C)
Antenna inputs: 2 x 50 ohm (SMA connectors)
Output: 24/16-bit digitized I&Q signal over USB/LAN interface
Interface:
USB 3.0
USB 2.0
1 Gbit Ethernet with PoE (Power over Ethernet)
Self-diagnostics: BIT (Built-In test) of the signal and processing path.
Thermal management - temperature monitoring.
Power supply: 16 W (12 V/1.33 A), or 20 W (PoE - IEEE 802.3at)
Operating temperature: 0 to 50 °C (with 12V PSU and via PoE with /LP HW option)
Dimensions: 166 x 97 x 59 mm (6.5" x 3.8" x 2.3")
Weight : 839 g (29.6 oz)
- System requirements:
PC with 2.4 GHz quad core CPU or faster
One free USB 3.0 or Ethernet socket
Windows 8, 10 or 11
