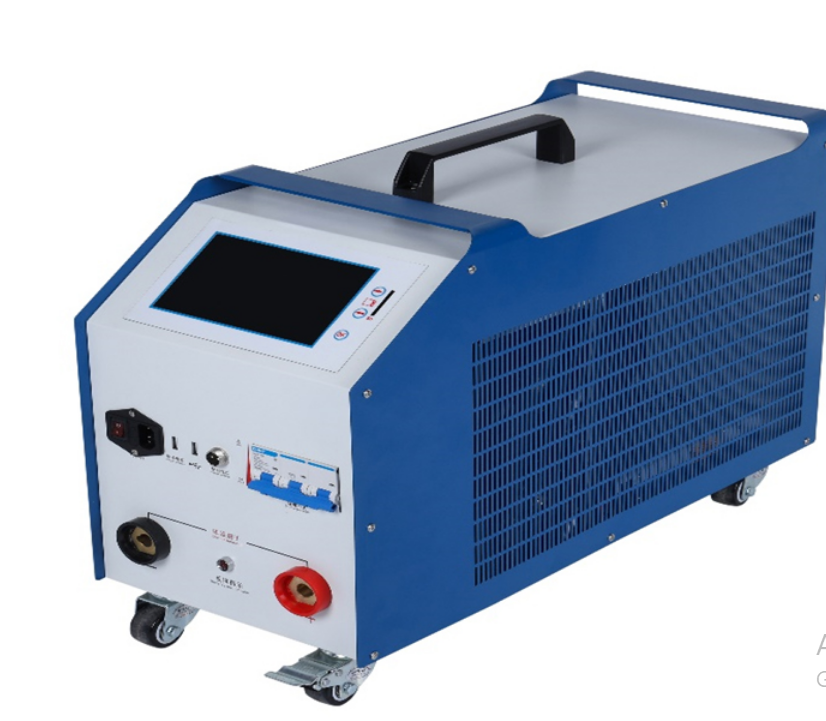

Wrindu JZL-24/10 Battery Load Bank (24V, 1-100A)

Output voltage: 24V

Output current: 1-100A

Discharge mode CC , CP

Accuracy & resolution: ≤ ±0.5%, 0.01V

DC voltage measurement

Internal current range: 2-300A

Accuracy & resolution: ≤ ± 1%; 0.1A

Cell voltage Range: 0-15V

Accuracy & resolution: ≤ ± 0.5%; 0.01 V

AC power supply

Power Supply : AC 220V, 50Hz

Cooling mode: Air Cooling

Communication & storage

Storage mode: SD card and internal storage

Internal memory: 16MB flash or optional

Display: 7 inch touch screen

High-Voltage insulation test:

- Input-The enclosure: 2200Vdc 1min

- Input-Output: 2200Vdc 1min

- Output- The enclosure: 700Vdc 1min

Environment

Work temperature: -5～50℃

Storage temperature: -40～70℃

Humidity : 5%～95% RH

Altitude: Below 4000 m

Working noise : <60 dB

Dimensions of host machine: 55x25x44 mm

Net weight: 23 kg
