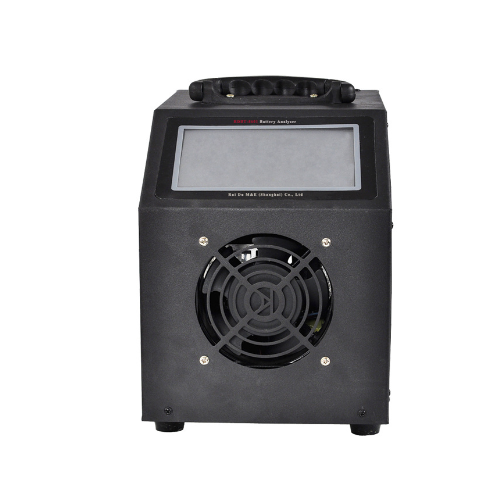

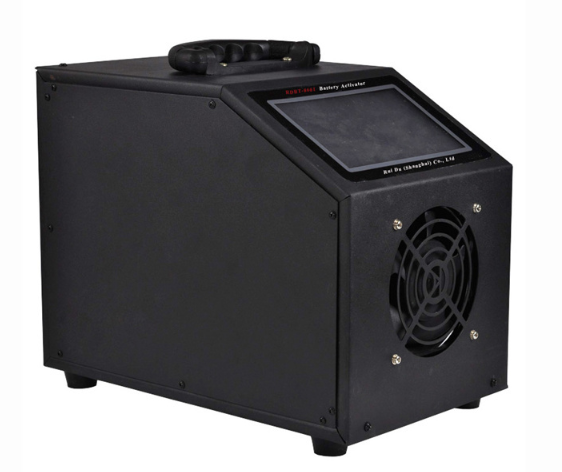

Wrindu RDBT-8601 Battery Activator

- Charging current

+ Battery activator: 1-100A(2V mode) / 1-30A(6V mode) / 1-30A(12V mode)

+ Resolution: 0.01A

+ Steady current/voltage accuracy: Better than 1.0%

- Discharge current

+ Battery activator: 1-100A(2V mode) / 1-30A(6V mode) / 1-30A(12V mode)

+ Resolution: 0.01A

+ Steady current/voltage accuracy: Better than 1.0%

- Total charging and discharging voltage

+ Battery activator: 1.5V-2.6V(2V mode) / 4.5V-9.0V(6V mode) / 9.0-16V (12V mode)

+ Resolution: 0.001V (2V mode) / 0.01V (6V、12V mode)

+ Steady current/voltage accuracy: ≤0.5%

- Temperature measurement range: -10°C ～ 55°C / 0.001°C / 0.1°C

- Pulse period: 15 seconds

- Power supply: AC220±10%

- Use environment: 0°C ～ 50°C, 5% ～ 90%RH, indoor

- Display mode: 480*800 LCD

- Communication interface: Can be customized according to customer requirements (RS232 communication and USB communication)

- Mode of carrying: Portable

- Heat dissipation mode: Strong wind refrigeration

Product Features:

1. The daily maintenance function of battery is complete

2. Small size, easy to transfer

3. Temperature monitoring, beyond the set value automatically start the fan for cooling

4. Three stage charging to ensure no overcharge

5. The optional pulse repair charging mode can obviously repair the backward battery caused by sulfuration

6. Voltage / current limiting protection to ensure no over discharge or overcharge

7. Intelligent polarity reversal protection

8. Modular design, convenient maintenance

9. Good user interface, large screen LCD, menu operation, rich man-machine interface
