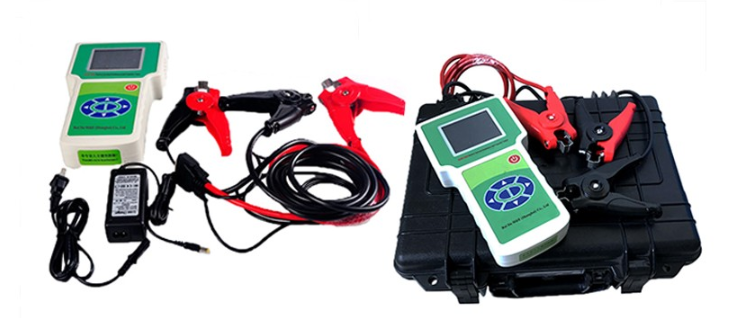

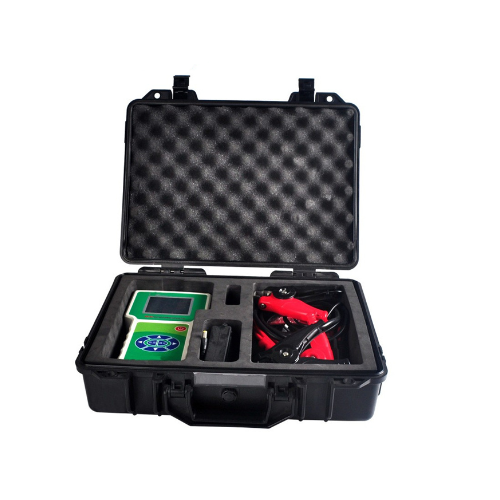

Wrindu RDBT-8604 Battery Internal Resistance And Capacity Tester (0-15V)

1. Battery cell voltage: range 0-15V, resolution 0.001V

2. Internal resistance: range 0-100 mΩ, resolution 1 uΩ

3. Temperature: -20℃～80℃，resolution 0.5%±1℃

4. Power supply: 12V 3000mAh rechargeable lithium battery；

5. Standby time: > 32 hours (with automatic standby function)

6. Test time: no less than 6 hours of continuous work

7. Data storage: 999 measurements in a single section, 110 tests in a whole group, and 18 groups can be saved

8. Storage capacity: 512kbytes；

9. Overall dimension: 238*134*45mm；

10. Working humidity: 10%～90%；

11. Working temperature: 0℃～40℃；

12. Storage temperature: -20℃～60℃

Product features:

1. The capacity of battery can be estimated

2. Our Battery Inner Resistance and capacityTester can test the battery voltage and battery internal resistance

3. Our Internal battery resistance measurement can be used as a voltmeter to test the voltage of single battery

4. Automatic identify batteries with different voltage levels

5. Built in battery internal resistance base value table for customers' reference and analysis

6. Reverse connection protection of storage battery

7. Buzzer and screen text prompt for the judgment result or fault

8. Support the storage of data in the form of battery pack, which is convenient for customers to browse each battery data of battery pack

9. Support English input of site name and group number

10. Lithium battery charging status indication

11. Automatic standby function, 10 minutes no operation, automatic shutdown

12. Data recording and storage function
