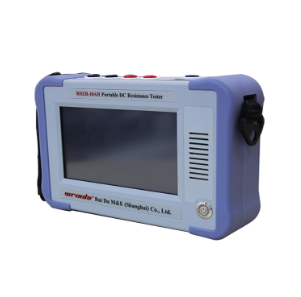

Wrindu RDZR-10AH Portable DC Resistance Tester (10A, 0.5mΩ ~50kΩ)

Test current: <20mA, 40mA, 200mA, 1A, 3A, 10A

Measuring range:

0.5mΩ ~ 0.2Ω        (10A), Accuracy: ±(0.2%+2d)

5mΩ ~ 4Ω            (3A), Accuracy: ±(0.2%+2d)

10mΩ ~ 10Ω             (1 A), Accuracy: ±(0.2%+2d)

100mΩ ~ 50Ω       (200mA), Accuracy: ±(0.2%+2d)

1Ω ~ 300Ω          (40mA), Accuracy: ±(0.2%+2d)

100Ω ~ 50kΩ       (<20mA), Accuracy: ±(0.5%+2d)

Minimum resolution: 0.1μΩ

Display: 7 inch touch color LCD

Data storage: 1000 groups

Work environment:

Ambient temperature: 0℃ ~ 40℃

Relative humidity: < 90%RH, no condensation

Power supply: Built in rechargeable lithium battery or power adapter
