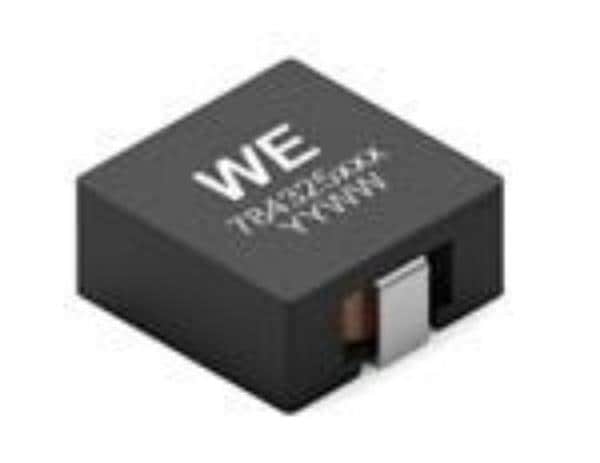

Wurth Elektronik 7443556450 고출력 인덕터 WE-HCI 4.5uH 20.5A DCR=3.4mOhms AEC-Q200

Width: 18.2 mm

Height: 8.9 mm

Length: 18.3 mm

Shielding: Shielded

Tolerance: 20 %

Inductance: 4.5 uH

Application: Power

Termination: Standard

Unit Weight: 14.500 g

Core Material: Iron Powder

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: SMD/SMT

Maximum DC Current: 20.5 A

Saturation Current: 16 A

Maximum DC Resistance: 3.4 mOhms

Self Resonant Frequency: 35 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
