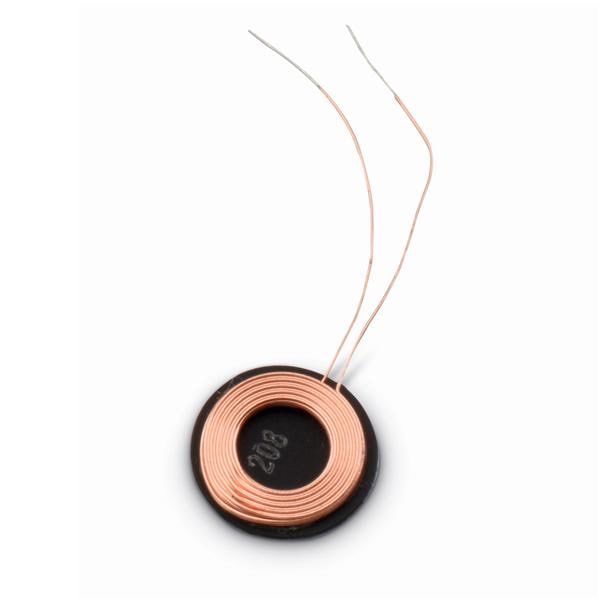

Wurth Elektronik 760308101208 무선 충전 코일 WE-WPCC 수신기 Qi 13uH 0.8A 0.5Ohm

Width: 10.3 mm

Height: 1.68 mm

Length: 10.3 mm

Function: Receiver

Q Minimum: 17

Tolerance: 10 %

Inductance: 13 uH

Unit Weight: 275 mg

Number of Coils: 1 Coil, 1 Layer

Maximum DC Resistance: 500 mOhms

Self Resonant Frequency: 26 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 20 C
